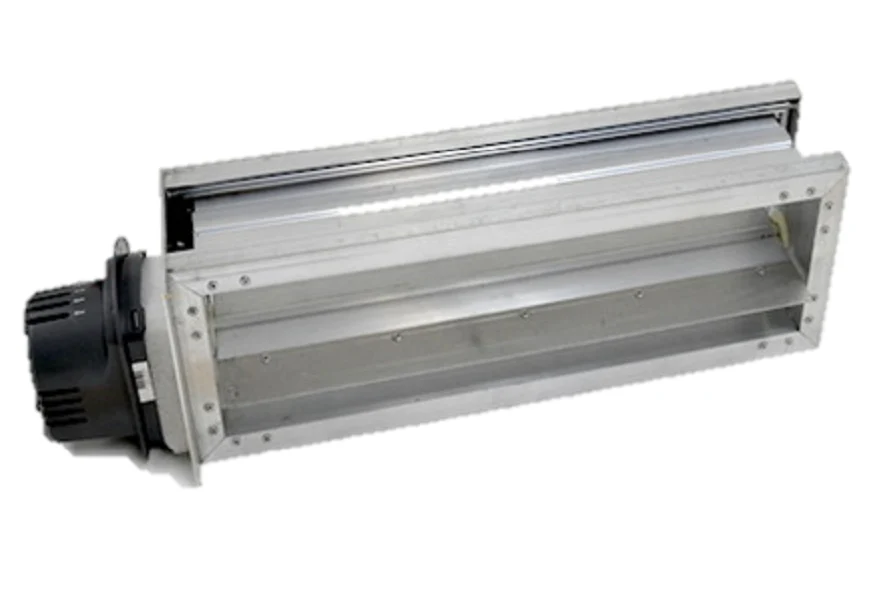

Resideo ZD18X6TZ Damper
The Resideo ZD18X6TZ is a heavy-duty 18x6 zone damper designed for precision airflow management in forced air zoning systems. Built with a robust extruded aluminum frame and parallel blades, this rectangular motorized damper ensures low-leakage performance and structural integrity in high-static pressure environments. It features a high-torque 24VAC synchronous motor that operates on a power-close, spring-return-open logic, making it a reliable fail-safe solution for zones requiring a normally open damper configuration. The motor is side-mounted on the 6-inch dimension for a low-profile fit in narrow plenum spaces.
For veteran contractors, the ZD18X6TZ integrates seamlessly with Honeywell TrueZONE panels and other standard 24V electronic controllers. Its synchronous drive and Kevlar-reinforced gearing are engineered to minimize mechanical wear, providing consistent 30-second power-close and 10-second spring-return timing. With adjustable mechanical range stops and a visual position indicator, this HVAC zone damper allows for rapid field commissioning and easy status verification during routine maintenance calls.
Key Benefits- Parallel Blade Accuracy: Engineered for tight-seal, low-leakage airflow control within standard rectangular ductwork.
- Fail-Safe Operation: The spring-return mechanism automatically resets the damper to the open position during power loss to prevent equipment freeze-ups.
- Simplified Wiring: Features a 2-wire setup (M1 and M6) with an optional M4 terminal for LED status monitoring.
- Contractor Grade Construction: High-quality aluminum extrusion resists corrosion and maintains squareness during installation.
- Broad Compatibility: Works with all major 24V zoning panels and smart home HVAC integration setups.
Can the ZD18X6TZ be installed in any orientation?
Yes, the synchronous motor and frame design allow for installation in any orientation, whether on the side or bottom of the ductwork.
What is the maximum static pressure rating for this damper?
The Resideo ZD series is typically rated for systems with static pressures up to 0.20 in. w.c., ensuring reliable blade movement under high-velocity airflow.
Is the actuator replaceable without removing the damper?
The 24V synchronous motor is designed for easy field replacement, allowing technicians to swap the actuator without cutting into the ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
