Resideo ZD18X16TZ Damper

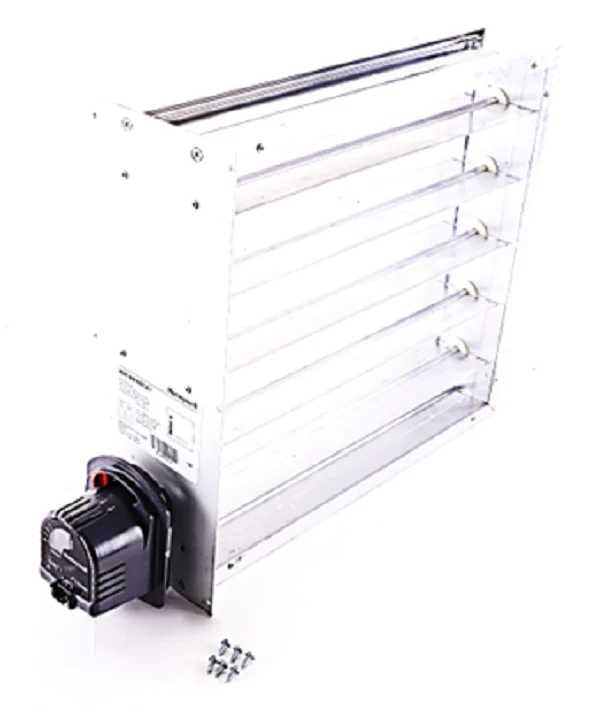

The Resideo ZD18X16TZ is a high-performance rectangular zone damper engineered for heavy-duty forced air zoning. Built with a rugged extruded aluminum frame and parallel blades, this 18" x 16" unit delivers low-leakage performance, ensuring precise airflow control across multiple zones. The integrated 24Vac synchronous motor is mounted on the 16" side and features a power closed/spring return open configuration, providing a fail-safe normally-open position in the event of power loss. Designed for seamless integration with Honeywell TrueZONE and other electronic zoning systems, the ZD18X16TZ uses a simplified two-wire installation (M1 and M6 terminals) with an optional M4 terminal for LED status monitoring. The parallel blade damper design minimizes pressure drop and air noise, while adjustable range stops allow technicians to fine-tune the minimum and maximum blade positions to meet specific delivery requirements in the field. This industrial-grade HVAC zone damper is an essential component for contractors looking to optimize system balancing and efficiency.
- Extruded Aluminum Construction: Corrosion-resistant frame and blades ensure long-term durability in high-cycle zoning applications.
- Fail-Safe Operation: The spring return open motor ensures air passage remains clear if the control signal or power is interrupted.
- Low Leakage Design: Parallel blade configuration with gaskets provides superior seals to prevent air bleed into inactive zones.
- Installation Flexibility: Multi-poise mounting allows the damper to be oriented in any position within the ductwork.
- Contractor Friendly: Features a visual position indicator and simple set-screw motor coupling for streamlined maintenance and replacement.
Common Questions
What is the fail-safe position of this damper?
The ZD18X16TZ is a normally-open damper. It requires a constant 24Vac signal to remain closed and will spring back to the open position whenever power is removed.
Can I adjust the amount of air that bypasses the damper when it is closed?
Yes, the actuator is equipped with adjustable range stops. You can mechanically set a minimum opening to allow a specific percentage of circulating air to pass even when the zone is not calling.
Is this damper compatible with older Honeywell zone boards?
Modern ZD series dampers are fully compatible with current TrueZONE panels and most legacy 24V zone control systems. Always verify the VA rating of your transformer when adding multiple dampers to a single zone.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
