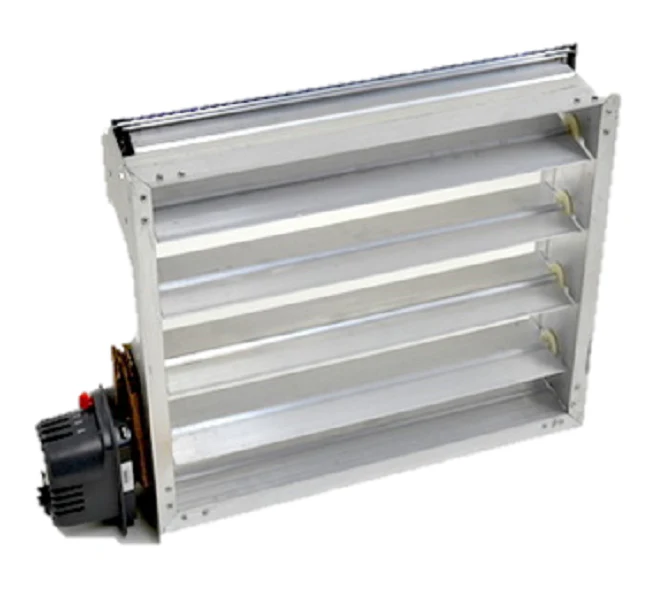

Resideo ZD18X14TZ Damper
The Resideo ZD18X14TZ is a professional-grade 18x14 parallel blade zone damper engineered for high-static pressure applications in residential and light commercial forced-air systems. This power closed spring return open model features a high-torque 24Vac synchronous motor mounted on the 14-inch side, ensuring reliable two-position airflow control. The parallel blade orientation provides low flow resistance when fully open, minimizing pressure drop across the HVAC zoning system. Built with heavy-duty galvanized steel, the ZD18X14TZ zone damper utilizes synthetic blade bushings to reduce friction and eliminate mechanical binding. For contractors, the simplified two-wire installation and manual blade adjustment feature streamline commissioning. Whether you are replacing a legacy damper or installing a new Honeywell Home zoning solution, this unit maintains precise environmental control and improves thermal equilibrium throughout the structure when paired with a compatible 24V zone control panel.
Key Benefits:
- High-Torque Motor: Features a reliable synchronous motor for consistent damper actuator performance under varying load conditions.
- Galvanized Steel Construction: Ensures long-term structural integrity and corrosion resistance within the plenum.
- Mechanical Blade Adjustment: Allows technicians to set minimum positions to prevent coil freeze-ups or satisfy ventilation requirements.
- Parallel Blade Design: Optimized for standard rectangular ductwork to maintain efficient airflow management.
- Spring Return Logic: Fail-safe "Open" configuration ensures airflow continues if power to the zone damper is lost.
Common Questions:
Can the motor be replaced without removing the damper from the duct?
Yes, the motor assembly is designed for field serviceability, allowing for quick head replacement without breaking the duct seal.
What type of zone control panel is required for the ZD18X14TZ?
This damper is compatible with most standard 24Vac zone control boards that support power-closed, spring-open logic.
Does this damper support a minimum position bypass?
Yes, the actuator includes a mechanical stop that can be adjusted to allow a percentage of air to bleed through even when the damper is energized closed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $313.33
-65%$313.33
$109.67Resideo ZD18X14TZ Damper
