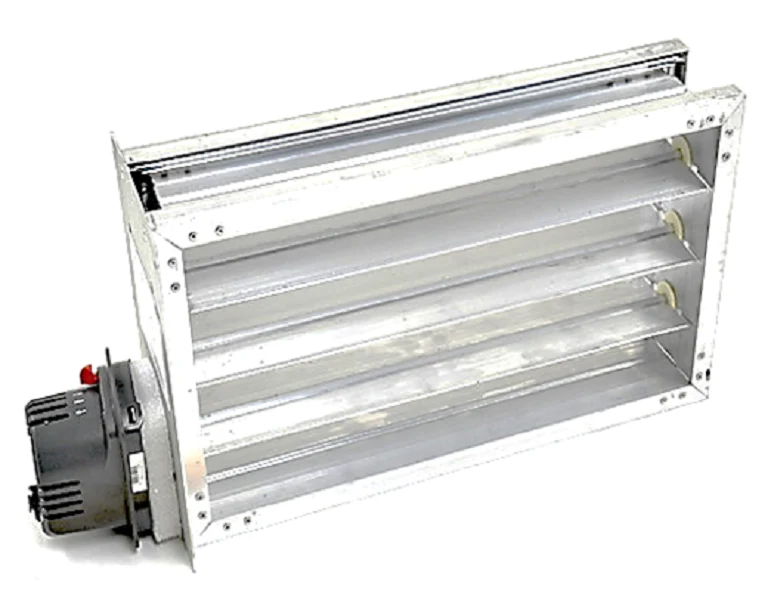

Resideo ZD18X10TZ Damper
For specialized zoning requirements, the Resideo ZD18X10TZ Damper offers a heavy-duty solution for managing airflow in residential and light commercial forced air zoning systems. This 18" x 10" parallel blade zone damper is engineered with a high-torque 24V synchronous motor mounted on the 10-inch side, ensuring reliable two-position control. Designed specifically for normally open applications, the unit utilizes power-closed spring-return logic to ensure the zone remains open during power loss. The extruded aluminum frame and parallel blades are built for structural integrity and a low-leakage seal, maintaining system efficiency under static pressures up to 1.0 in. wc. Integration is streamlined via a two-wire 24Vac connection, making it compatible with TrueZONE panels and most third-party controls. Veteran installers will appreciate the adjustable mechanical range stops and visual position indicator for rapid field commissioning and troubleshooting.
Key Benefits- Enhanced Durability: Solid extruded aluminum construction prevents frame twisting and ensures smooth blade operation over time.
- Fail-Safe Logic: The spring return open configuration provides a default path for airflow, protecting heat exchangers during control failures.
- Precision Control: Features adjustable range stops to define minimum and maximum blade travel for customized zone balancing.
- Simplified Wiring: Two-wire damper design reduces termination time at the zone panel with clear terminal labeling (M1/M6).
- Low Operating Noise: Parallel blade geometry minimizes turbulence and whistling even at higher duct velocities.
Is the actuator field-replaceable?
Yes, the synchronous motor is a direct-drive assembly that can be removed and replaced without dismantling the entire damper from the ductwork.
Can this be used with non-Honeywell zoning panels?
Yes, while optimized for TrueZONE systems, it is compatible with any standard 24Vac zoning system that supports 2-wire power-close/spring-open logic.
How do I adjust the minimum airflow?
Manual range stops located on the actuator allow you to set a minimum open position to prevent air stagnation or to meet specific ventilation requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
