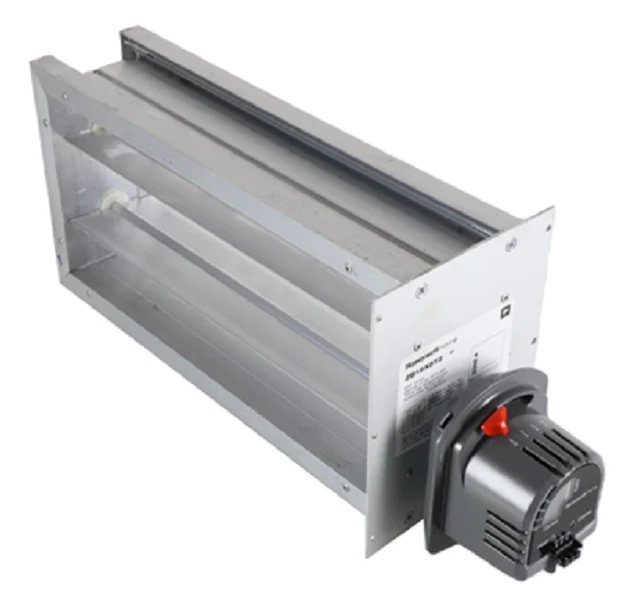

Resideo ZD16X8TZ Damper
The Resideo ZD16X8TZ is a heavy-duty, rectangular parallel blade zone damper designed for precision airflow control in residential and light commercial forced-air systems. Built with a robust extruded aluminum frame and blades, this 16" x 8" damper utilizes a 24VAC synchronous motor for reliable two-position control. Operating as a power closed, spring return open (PC/SO) component, it serves as a fail-safe, normally-open solution that ensures maximum ventilation during power loss. The motor is factory-mounted on the 8-inch side, simplifying integration into standard ductwork layouts. TrueZONE compatibility allows for seamless pairing with Honeywell Home zoning panels, while the redesigned all-metal drive train gears and Kevlar gearing significantly extend the service life of the actuator. With a low leakage design maintaining less than 1% leakage at 0.5 in. WC, this motorized HVAC damper is ideal for contractors looking for high-efficiency airflow regulation in multi-zone applications.
Key Benefits
- High-Durability Construction: Features extruded aluminum blades and a reinforced frame to resist corrosion and structural warping over time.
- Fail-Safe Operation: The spring return mechanism automatically opens the damper in the event of a power failure, preventing system static pressure spikes.
- Precision Installation: Includes adjustable range stops to fine-tune minimum and maximum airflow positions based on specific zone requirements.
- Visual Diagnostics: A mechanical position indicator provides immediate visual confirmation of the damper status for faster troubleshooting.
- Quiet Performance: Engineered for quiet operation with a 30-second power stroke and 10-second spring return, reducing noise complaints in residential settings.
Common Questions
Is this damper compatible with non-Resideo zoning panels?
Yes, as a standard 24V two-wire damper, it can be integrated with most electronic zoning systems that support power closed, spring return open logic. Terminal M4 is also available for optional LED status indication.
Can the motor be moved to the 16-inch side in the field?
No. In the ZD series, the motor is factory-fixed on the second dimension provided (the 8-inch side). For a motor on the 16-inch side, a ZD8x16 model would be required.
What is the maximum static pressure rating for this unit?
The ZD16X8TZ is rated for operation in systems with a maximum static pressure of up to 1.0 in. WC, making it suitable for high-velocity residential trunk lines.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
