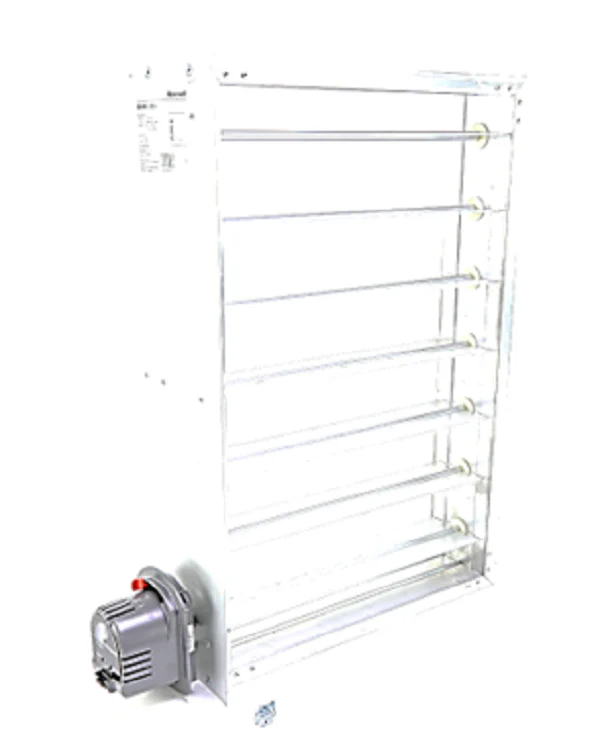

Resideo ZD16X24TZ Damper
The Resideo ZD16X24TZ Parallel Blade Zone Damper is a contractor-grade rectangular zone damper engineered for precision airflow management in forced-air zoning systems. Constructed with a heavy-duty extruded aluminum frame and parallel blades, this 16" W x 24" H unit ensures high-velocity durability and low-leakage performance, rated to operate up to 1.0 in. w.c. static pressure. The motorized assembly features a 24Vac synchronous motor mounted on the 24" side, operating as a power closed/spring return open (normally open) fail-safe component. This makes it an ideal choice for bypass applications or zones requiring default ventilation. The integrated position indicator and adjustable range stops allow for field-tuning of minimum and maximum blade positions, while the two-wire installation simplifies TrueZONE panel integration. Relying on all-metal drive train gears, this zoning damper provides the mechanical reliability required for high-cycle residential and light commercial HVACR demanding environments.
- Parallel Blade Design: Maximizes airflow control and ensures a tighter seal for reduced thermal bypass in multi-zone configurations.
- Fail-Safe Operation: The spring return open mechanism ensures the damper defaults to the open position during power loss, preventing coil freeze-ups.
- Rugged Aluminum Build: Extruded aluminum blades and riveted/screwed corners prevent frame racking and withstand demanding duct pressures.
- Field Adjustable: Includes adjustable range stops to limit blade travel, providing the technician total control over zone CFMs.
- Modern Actuator: Features a 24V low-voltage motor with M1, M6, and optional M4 (LED) terminal connections for streamlined wiring.
Common Questions
Can this damper be used in a power open configuration?
No, the ZD16X24TZ is a dedicated power closed-spring open damper. For fresh air intake or power-open applications, a round EARD or adjustable ARD model should be utilized.
What happens if the motor fails or power is lost?
The internal spring return motor will automatically pull the blades to the fully open position, maintaining airflow to the zone as a safety precaution.
Is this compatible with non-Resideo zone panels?
Yes, as a standard 24Vac two-position damper, it is compatible with most HVAC zoning systems that provide a 24V signal to close the damper.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
