Resideo ZD16X18TZ Damper

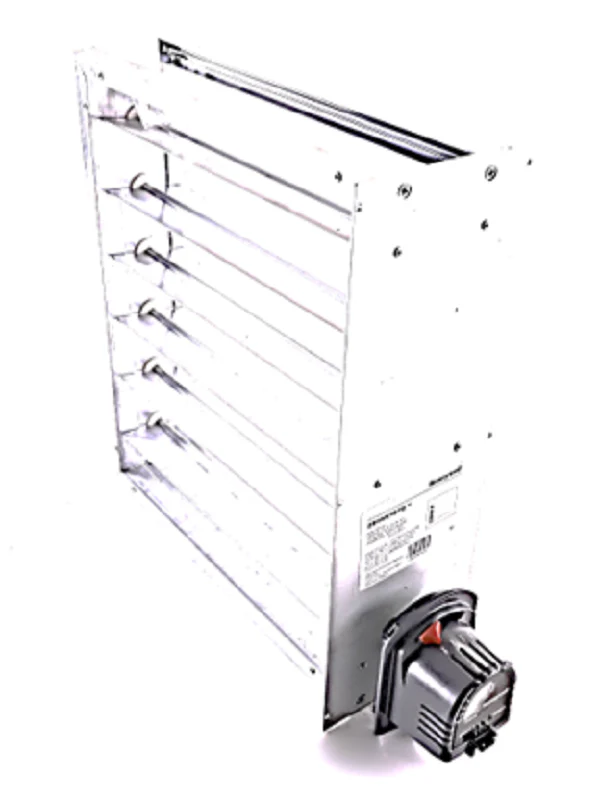

The Resideo ZD16X18TZ is a robust 16" Wide X 18" High parallel blade zone damper engineered for precision airflow control in residential and light commercial HVAC zoning applications. Built with a high-grade extruded aluminum frame and blades, this unit is designed for long-term durability and low-leakage performance. The synchronous motor is a 24Vac power closed/spring return open actuator, ensuring a fail-safe normally open position during power loss to prevent system stagnation. Mounted on the 18" side, the two-position damper integrates seamlessly with Honeywell TrueZONE panels and other 24V electronic zoning systems. The parallel blade design provides consistent pressure across the duct, while adjustable range stops allow for fine-tuned balancing. For the technician in the field, the mechanical visual position indicator simplifies troubleshooting, and the two-wire installation reduces labor time. This rectangular zone damper supports static pressures up to 1.0" W.C., making it a reliable solution for managing multi-zone thermal comfort.
- Fail-Safe Dynamics: Features a power closed and spring return open motor for automatic air path availability during power failures.
- Heavy-Duty Build: Utilizes extruded aluminum construction for corrosion resistance and structural rigidity in high-velocity ducts.
- Precise Control: Equipped with parallel blade action for efficient HVAC airflow management and minimal air bypass.
- Universal Versatility: Direct Honeywell ZD series replacement compatible with most 24V HVAC zoning systems.
Common Questions
How do I verify the motor mounting side?
On the Resideo ZD16X18TZ, the motor is always mounted on the second dimension specified, which is the 18" side in this 16x18 configuration.
Is this damper compatible with 3-wire systems?
This is a 2-wire 24V spring return damper. While predominantly used in 2-wire setups, it can be integrated into systems requiring a fail-safe open state without the complexity of 3-wire floating actuators.
Can the motor be replaced without removing the damper?
Yes, the synchronous motor is designed for easy field replacement by loosening the set screw, allowing for quick maintenance without breaking the duct seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
