Resideo ZD16X12TZ Damper

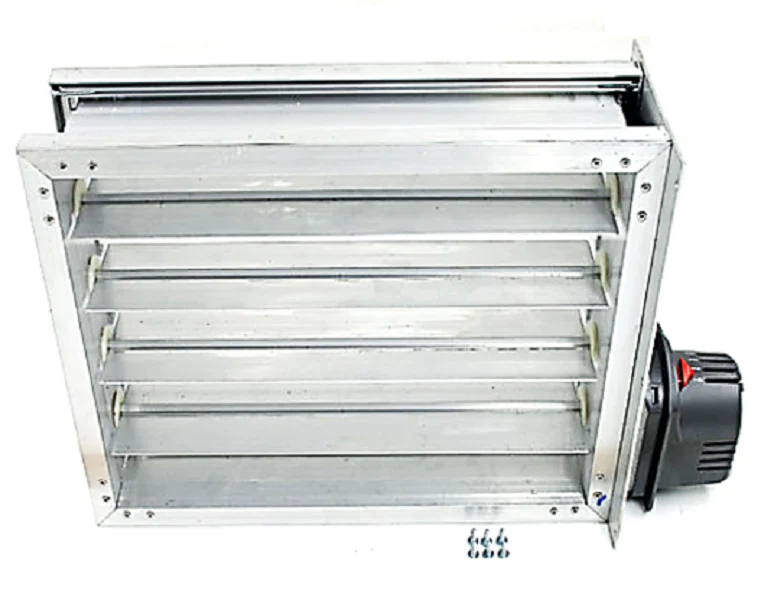

The Resideo ZD16X12TZ Damper is a professional-grade, 24Vac powered HVAC zone damper specifically engineered for high-performance residential and light commercial zoning systems. As a veteran-preferred rectangular zone damper, it features parallel blade action and a power closed/spring return open fail-safe configuration, making it the ideal choice for zones requiring a normally-open default state. This 16" x 12" unit is built with a heavy-duty extruded aluminum frame and blades to ensure structural integrity and a low leakage seal, rated at less than 1% at 0.5 in. WC.
The synchronous motor is side-mounted on the 12-inch dimension, delivering a minimum of 71 in-oz of torque for consistent operation. For streamlined integration, this TrueZONE compatible component utilizes a simple two-wire installation with terminal blocks for M1 (Power) and M6 (Common), alongside an optional M4 terminal for LED status monitoring. With a rapid 30-second power closure and 10-second spring return, the ZD16X12TZ provides the precise airflow control and static pressure management required by modern forced air zoning systems.
Key Benefits- Fail-Safe Reliability: The spring-return mechanism ensures the damper reverts to the open position during power loss, preventing system over-pressurization.
- Precise Airflow Control: Parallel blade design and adjustable mechanical range stops allow technicians to fine-tune minimum and maximum CFM bypass.
- Thermal Durability: Rated for ambient temperatures up to 140°F, suitable for high-heat attic or mechanical room installations.
- Simplified Diagnostics: Integrated visual position indicator on the motor allows for immediate verification of damper status without removing ductwork.
- Universal Compatibility: Optimized for use with Resideo TrueZONE panels and most third-party 24V zoning controllers.
Can this damper be installed vertically?
Yes, the ZD series is multi-poise. It can be installed in any orientation, provided the motor is not positioned on the bottom of the duct in horizontal runs to prevent moisture accumulation.
What is the maximum static pressure rating?
This rectangular damper is designed to operate reliably in systems with a maximum static pressure of up to 1.0 in. WC.
Does this require a specific wire type?
18-gauge solid copper wire is recommended for the push-terminal connections to ensure a secure, low-resistance interface.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $237.55
-65%$237.55
$83.14Resideo ZD16X12TZ Damper
The Resideo ZD16X12TZ Damper is a professional-grade, 24Vac powered HVAC zone damper specifically engineered for high-performance residential and light commercial zoning systems. As a veteran-preferred rectangular zone damper, it features parallel blade action and a power closed/spring return open fail-safe configuration, making it the ideal choice for zones requiring a normally-open default state. This 16" x 12" unit is built with a heavy-duty extruded aluminum frame and blades to ensure structural integrity and a low leakage seal, rated at less than 1% at 0.5 in. WC.
The synchronous motor is side-mounted on the 12-inch dimension, delivering a minimum of 71 in-oz of torque for consistent operation. For streamlined integration, this TrueZONE compatible component utilizes a simple two-wire installation with terminal blocks for M1 (Power) and M6 (Common), alongside an optional M4 terminal for LED status monitoring. With a rapid 30-second power closure and 10-second spring return, the ZD16X12TZ provides the precise airflow control and static pressure management required by modern forced air zoning systems.
Key Benefits- Fail-Safe Reliability: The spring-return mechanism ensures the damper reverts to the open position during power loss, preventing system over-pressurization.
- Precise Airflow Control: Parallel blade design and adjustable mechanical range stops allow technicians to fine-tune minimum and maximum CFM bypass.
- Thermal Durability: Rated for ambient temperatures up to 140°F, suitable for high-heat attic or mechanical room installations.
- Simplified Diagnostics: Integrated visual position indicator on the motor allows for immediate verification of damper status without removing ductwork.
- Universal Compatibility: Optimized for use with Resideo TrueZONE panels and most third-party 24V zoning controllers.
Can this damper be installed vertically?
Yes, the ZD series is multi-poise. It can be installed in any orientation, provided the motor is not positioned on the bottom of the duct in horizontal runs to prevent moisture accumulation.
What is the maximum static pressure rating?
This rectangular damper is designed to operate reliably in systems with a maximum static pressure of up to 1.0 in. WC.
Does this require a specific wire type?
18-gauge solid copper wire is recommended for the push-terminal connections to ensure a secure, low-resistance interface.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
