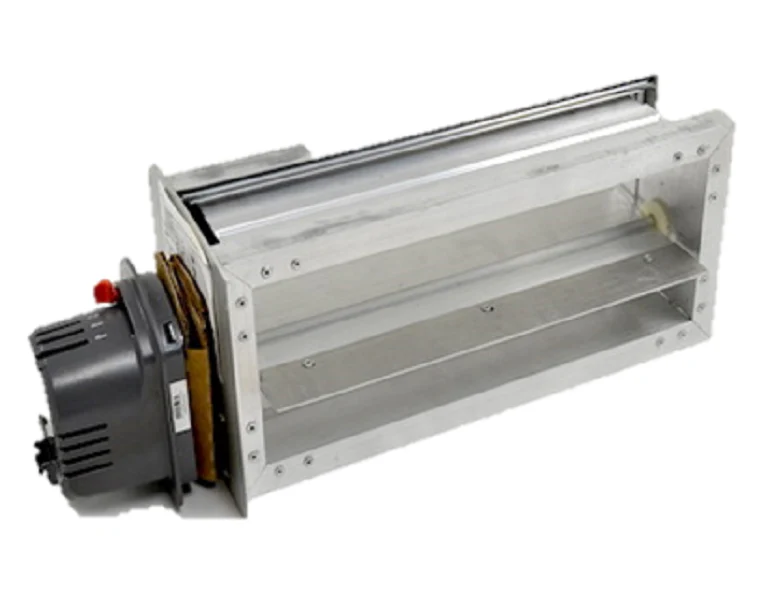

Resideo ZD14X6TZ Damper
The Resideo ZD14X6TZ Damper is a professional-grade 14x6 zone damper engineered for precision airflow management in HVAC zoning systems. Featuring a robust parallel blade design, this rectangular zone damper ensures high-efficiency performance with less than 1% leakage at 0.5 in. WC. The unit is driven by a reliable 24V synchronous motor mounted on the 6-inch side, utilizing power closed/spring return open logic. This fail-safe configuration makes it an ideal choice for systems requiring a normally open damper to maintain ventilation during power calls. With galvanized steel construction and an extruded aluminum frame, the ZD14X6TZ provides the durability required for both residential and commercial Forced Air Zoning. It integrates seamlessly with Honeywell TrueZONE panels, featuring a mechanical visual position indicator and simplified range stops for streamlined commissioning. This two-position damper is a staple for contractors looking to optimize automatic air control and multi-zone comfort troubleshooting.
- Precision Air Regulation: Parallel blade configuration designed for low-leakage airflow control within standard ductwork.
- Fail-Safe Logic: Spring-return open operation ensures air paths remain clear during power loss or system standby.
- High Compatibility: Fully compatible with Resideo TrueZONE and other 24Vac electronic zoning controllers.
- Technician-Friendly Install: Features a simple two-wire terminal connection (M1/M6) and a visual position indicator for rapid status checks.
Common Questions
What is the default state of the ZD14X6TZ during a power failure?
This model utilizes a spring-return mechanism that defaults to the open position when 24V power is removed, ensuring continuous airflow as a fail-safe measure.
Can the actuator be mounted on the 14-inch side?
No, for the ZD14X6TZ specifically, the motor is factory-mounted on the 6-inch side. If your application requires mounting on the 14-inch side, you would need to specify the alternate ZD14x6 (Dimension 1 x Dimension 2) configuration where the motor is always on Dimension 2.
Does this damper support 3-wire installation?
The standard configuration is a 2-wire setup (M1 Power, M6 Common). However, it includes an optional M4 terminal for LED position indication if supported by your control panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $226.55
-65%$226.55
$79.29Resideo ZD14X6TZ Damper
The Resideo ZD14X6TZ Damper is a professional-grade 14x6 zone damper engineered for precision airflow management in HVAC zoning systems. Featuring a robust parallel blade design, this rectangular zone damper ensures high-efficiency performance with less than 1% leakage at 0.5 in. WC. The unit is driven by a reliable 24V synchronous motor mounted on the 6-inch side, utilizing power closed/spring return open logic. This fail-safe configuration makes it an ideal choice for systems requiring a normally open damper to maintain ventilation during power calls. With galvanized steel construction and an extruded aluminum frame, the ZD14X6TZ provides the durability required for both residential and commercial Forced Air Zoning. It integrates seamlessly with Honeywell TrueZONE panels, featuring a mechanical visual position indicator and simplified range stops for streamlined commissioning. This two-position damper is a staple for contractors looking to optimize automatic air control and multi-zone comfort troubleshooting.
- Precision Air Regulation: Parallel blade configuration designed for low-leakage airflow control within standard ductwork.
- Fail-Safe Logic: Spring-return open operation ensures air paths remain clear during power loss or system standby.
- High Compatibility: Fully compatible with Resideo TrueZONE and other 24Vac electronic zoning controllers.
- Technician-Friendly Install: Features a simple two-wire terminal connection (M1/M6) and a visual position indicator for rapid status checks.
Common Questions
What is the default state of the ZD14X6TZ during a power failure?
This model utilizes a spring-return mechanism that defaults to the open position when 24V power is removed, ensuring continuous airflow as a fail-safe measure.
Can the actuator be mounted on the 14-inch side?
No, for the ZD14X6TZ specifically, the motor is factory-mounted on the 6-inch side. If your application requires mounting on the 14-inch side, you would need to specify the alternate ZD14x6 (Dimension 1 x Dimension 2) configuration where the motor is always on Dimension 2.
Does this damper support 3-wire installation?
The standard configuration is a 2-wire setup (M1 Power, M6 Common). However, it includes an optional M4 terminal for LED position indication if supported by your control panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
