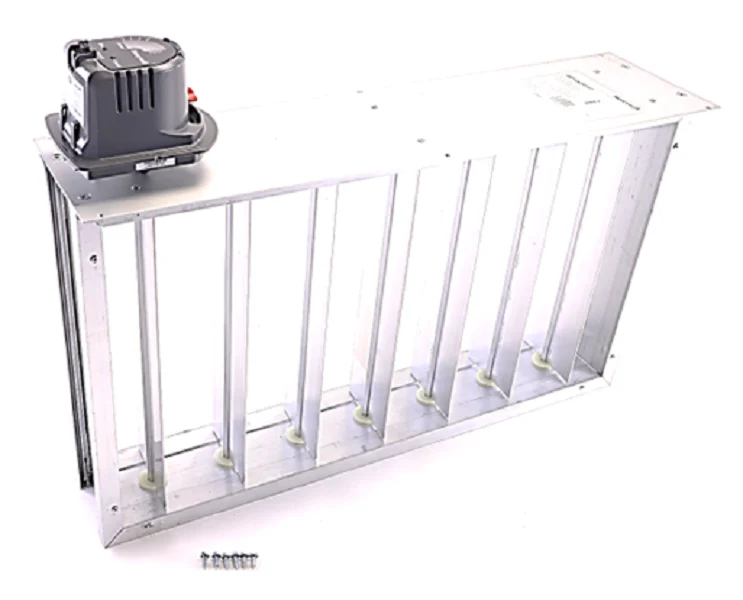

Resideo ZD14X24TZ Damper
The Resideo ZD14X24TZ is a professional-grade, rectangular zone damper engineered for precision airflow management in forced-air systems. Featuring a parallel blade configuration, this 14" W x 24" H unit is constructed from heavy-duty extruded aluminum for improved structural integrity and low-leakage performance. The integrated spring return open synchronous motor operates on 24Vac, providing a fail-safe position in the event of power loss. Designed for seamless integration with TrueZONE and other electronic zoning panels, the ZD14X24TZ utilizes high-torque Kevlar gearing to reduce mechanical wear and extend operational life. The actuator is conveniently side-mounted on the 24-inch dimension, and the assembly includes adjustable range stops alongside a mechanical visual indicator for rapid status diagnostic in the field. This unit offers flexible installation, supporting multi-poise mounting to fit any duct orientation while maintaining a quiet, efficient seal against static pressure up to 1” w.c.
Key Benefits- Enhanced Durability: Rugged extruded aluminum frame and blades prevent corrosion and bowing under high-velocity air.
- Reliable Fail-Safe: The power closed/spring return open motor ensures air passage if control power is interrupted.
- Precise Control: Parallel blade design minimizes air bypass, improving zone-specific efficiency.
- Simplified Installation: Standard two-wire connection and adjustable range stops streamline field setup and commissioning.
- Kevlar Technology: Redesigned gear train significantly increases motor longevity compared to standard nylon assemblies.
Is the motor on the 14-inch or 24-inch side?
On the ZD14X24TZ, the motor is factory-mounted on the 24-inch side. Always verify your duct dimensions as the actuator is positioned on the second dimension listed in the part number.
What is the fail-safe orientation for this model?
This is a normally open damper; it requires 24V to power close the blades and will automatically spring open when power is removed.
Can this damper be installed horizontally or vertically?
Yes, the ZD series supports multi-poise mounting, allowing for installation in any orientation provided there is adequate clearance for the actuator and wiring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
