Resideo ZD14X16TZ Damper

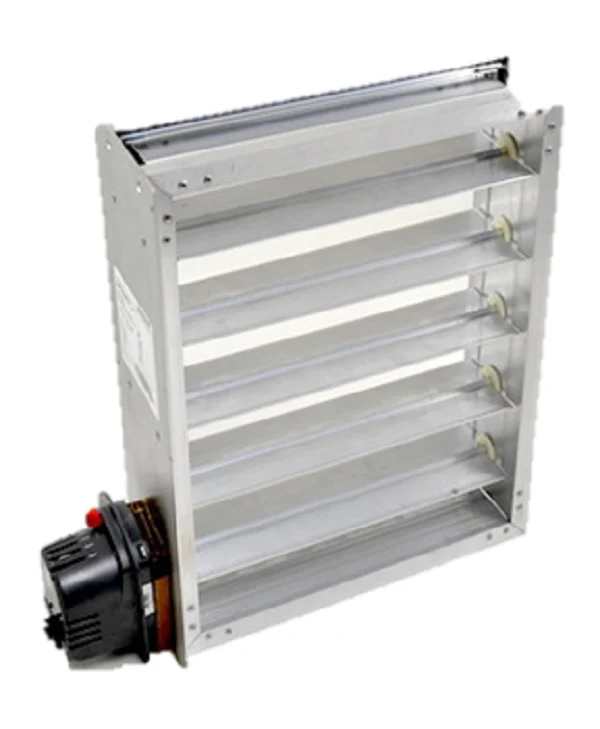

For professional contractors managing high-velocity or standard residential airflow, the Resideo ZD14X16TZ is a heavy-duty 14x16 parallel blade zone damper designed for seamless integration with Honeywell Home TrueZONE systems. Engineered with an extruded aluminum frame and blades, this rectangular damper utilizes a 24Vac power-closed spring-return open configuration, ensuring a fail-safe position if power is lost. The synchronous motor is strategically side-mounted on the 16-inch dimension, providing high-torque performance at 71 in-oz while maintaining a low power consumption of only 8 VA. With a focus on system integrity, the ZD14X16TZ features an extruded blade seal that significantly reduces bypass leakage to less than 1% at 0.5 in. WC, maximizing the efficiency of forced air zoning. This HVAC zone damper includes a mechanical visual position indicator and an LED light for rapid status diagnostics in the field, making it an essential component for high-performance zoning system parts.
Key Benefits- Fail-Safe Operation: The normally open spring-return mechanism ensures airflow is not restricted during power interruptions.
- Precise Airflow Control: Features adjustable range stops to limit travel and manage minimum airflow requirements in bypass-heavy applications.
- Rugged Reliability: Constructed with riveted and screwed corners for a heavy-duty damper unit that resists warping under duct pressure.
- Simplified Wiring: Two-wire terminal design (M1 and M6) allows for parallel wiring of multiple dampers to a single TrueZONE panel.
Is the motor field-replaceable without removing the damper?
Yes, the actuator can be swapped easily by loosening the set screw on the drive shaft, allowing for maintenance without breaching the ductwork.
Can I install this damper in any orientation?
This 14 in x 16 in parallel blade damper is designed for flexibility and can be mounted in any orientation, provided the duct is squared to prevent blade jamming.
Does this unit support electronic status monitoring?
The integrated LED indicator provides local visual confirmation of the open and closed positions, facilitating faster commissioning for the technician.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
