Resideo ZD14X14TZ Damper

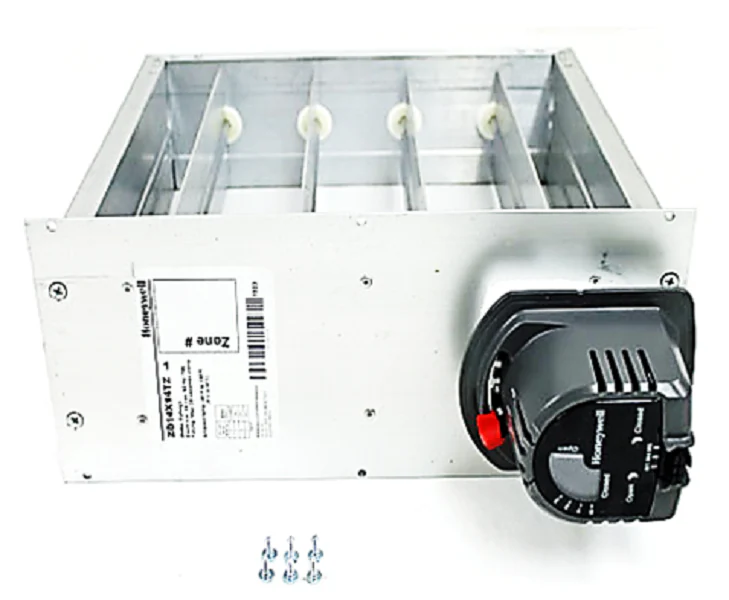

The Resideo ZD14X14TZ is a high-performance 14x14 zone damper engineered for professional HVAC zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this square zone damper provides superior airflow control with a low-leakage design. The integrated 24Vac synchronous motor operates on a power closed/spring return open logic, ensuring a fail-safe normally-open position during power loss. With a 30-second power-close and 10-second spring-return cycle, it delivers efficient response times for multi-zone residential or light commercial applications. This unit features Kevlar gearing for extended service life and simplified range stops for easy balancing during commissioning. Designed for two-position control, it integrates seamlessly with Honeywell TrueZONE panels and other standard 24V zoning controllers. The side-mount actuator includes a mechanical visual position indicator, allowing technicians to verify blade status at a glance without specialized tools.
Key Benefits- Robust Construction: Utilizing extruded aluminum blades and reinforced corners, this damper resists corrosion and maintains structural integrity in high-static environments.
- Fail-Safe Operation: The spring return open configuration ensures maximum airflow continues if the control signal or power is interrupted.
- Low Leakage Design: Parallel blades featuring extruded blade seals minimize air bypass when the zone is closed, increasing overall system efficiency.
- Technical Reliability: High-torque synchronous motor with Kevlar gearing significantly reduces internal wear compared to standard plastic gear trains.
- Easy Installation: Features simple two-wire installation with push-terminal connections for rapid field wiring to the zone control board.
Is the ZD14X14TZ compatible with 3-wire zoning systems?
This model is a two-wire damper. It is primarily designed for 24V power closed/spring return logic. For 3-wire power-open/power-close applications, verify terminal compatibility or use a dedicated interface relay.
Where should the actuator be oriented during installation?
The motor is factory-mounted on the 14-inch dimension side. However, the ZD series square dampers can be installed in any orientation (horizontal or vertical) within the ductwork as long as the blades move freely.
What is the maximum static pressure rating for this damper?
The Resideo TrueZONE ZD series is rated for a maximum static pressure of 1.0 inch WC, making it suitable for standard forced-air applications where precise airflow management is required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $237.55
-65%$237.55
$83.14Resideo ZD14X14TZ Damper
The Resideo ZD14X14TZ is a high-performance 14x14 zone damper engineered for professional HVAC zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this square zone damper provides superior airflow control with a low-leakage design. The integrated 24Vac synchronous motor operates on a power closed/spring return open logic, ensuring a fail-safe normally-open position during power loss. With a 30-second power-close and 10-second spring-return cycle, it delivers efficient response times for multi-zone residential or light commercial applications. This unit features Kevlar gearing for extended service life and simplified range stops for easy balancing during commissioning. Designed for two-position control, it integrates seamlessly with Honeywell TrueZONE panels and other standard 24V zoning controllers. The side-mount actuator includes a mechanical visual position indicator, allowing technicians to verify blade status at a glance without specialized tools.
Key Benefits- Robust Construction: Utilizing extruded aluminum blades and reinforced corners, this damper resists corrosion and maintains structural integrity in high-static environments.
- Fail-Safe Operation: The spring return open configuration ensures maximum airflow continues if the control signal or power is interrupted.
- Low Leakage Design: Parallel blades featuring extruded blade seals minimize air bypass when the zone is closed, increasing overall system efficiency.
- Technical Reliability: High-torque synchronous motor with Kevlar gearing significantly reduces internal wear compared to standard plastic gear trains.
- Easy Installation: Features simple two-wire installation with push-terminal connections for rapid field wiring to the zone control board.
Is the ZD14X14TZ compatible with 3-wire zoning systems?
This model is a two-wire damper. It is primarily designed for 24V power closed/spring return logic. For 3-wire power-open/power-close applications, verify terminal compatibility or use a dedicated interface relay.
Where should the actuator be oriented during installation?
The motor is factory-mounted on the 14-inch dimension side. However, the ZD series square dampers can be installed in any orientation (horizontal or vertical) within the ductwork as long as the blades move freely.
What is the maximum static pressure rating for this damper?
The Resideo TrueZONE ZD series is rated for a maximum static pressure of 1.0 inch WC, making it suitable for standard forced-air applications where precise airflow management is required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
