Resideo ZD12X22TZ Damper

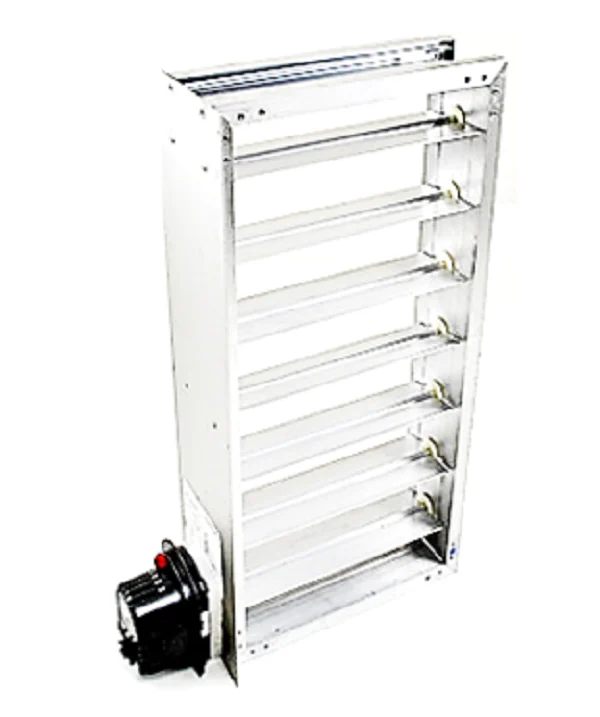

The Resideo ZD12X22TZ is a professional-grade 12 in. x 22 in. parallel blade damper engineered for precise zone control in high-performance forced air systems. Built with a rigid extruded aluminum frame and reinforced corners, this rectangular damper utilizes a power closed/spring return open logic, serving as a fail-safe solution that maintains airflow in the event of a power loss. The synchronous motor is mounted on the 22-inch side, operating on standard 24Vac power. This unit is a direct fit for Honeywell TrueZONE systems and other electronic zoning panels, offering a simple two-wire installation that streamlines the commissioning process for technicians. The parallel blade design is optimized for low-leakage performance, while the integrated mechanical visual position indicator provides immediate feedback on damper status during system testing and balancing. Designed for longevity and quiet operation, it includes adjustable range stops for granular airflow management.
Key Benefits- Fail-Safe Operation: The spring return open configuration ensures the zone remains open if power is interrupted, preventing furnace high-limit trips.
- Durable Construction: High-quality extruded aluminum blades and frame offer superior corrosion resistance and structural integrity compared to galvanized steel alternatives.
- Precise Control: Features a parallel blade action for efficient air diversion and minimal pressure drop when fully open.
- Simplified Wiring: The two-wire 24V motor simplifies installation on the job site, reducing labor time for multi-zone residential or light commercial projects.
- Status Verification: An external position indicator allows for quick troubleshooting without needing to open the ductwork.
Is the ZD12X22TZ compatible with non-Honeywell zone panels?
Yes, as long as the zoning system provides a standard 24Vac signal for power-close operation, this zone damper can be integrated into most third-party controls.
Can the synchronous motor be rotated or moved to a different side?
The motor is factory-mounted on the 22-inch side (dimension 2). For applications requiring different motor placement, technicians should verify the specific ZD series model number where the motor is always side-mounted on the second dimension listed.
What is the typical bridge or seal type for these blades?
These units utilize extruded blade seals along with riveted construction to minimize bypass leakage, ensuring the HVAC zoning system maintains high static pressure efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
