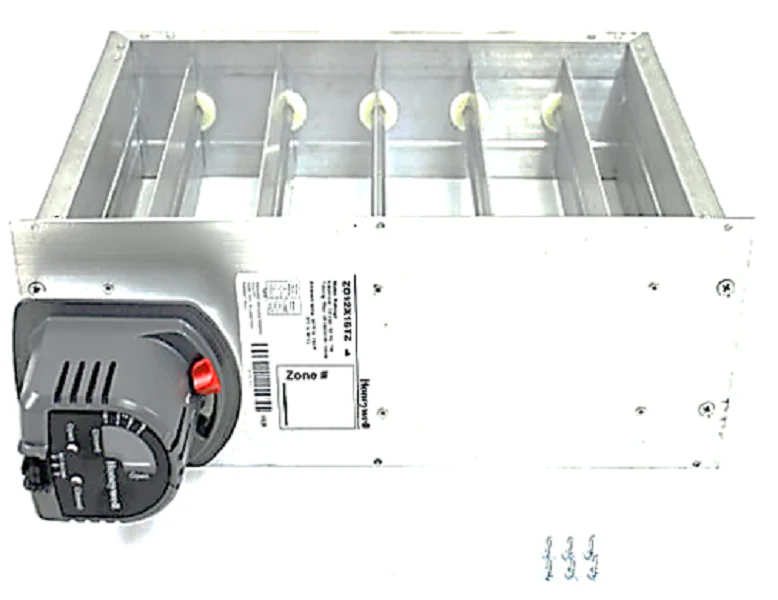

Resideo ZD12X16TZ Damper
The Resideo ZD12X16TZ is a professional-grade 12" Wide X 16" High Parallel Blade Zone Damper designed for high-performance forced air zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this unit ensures a low leakage performance (less than 1% at 0.5 in. WC) while maintaining structural integrity in high-velocity applications. The integrated 24Vac synchronous motor is side-mounted on the 16-inch dimension, providing a reliable power closed/spring return open operation. This fail-safe configuration ensures the damper defaults to the open position during a power loss, maintaining critical airflow. Ideally suited for Honeywell TrueZONE and other 24V electronic zoning panels, the ZD12X16TZ/U features simplified wiring and a mechanical visual position indicator for rapid field diagnostics. Its synchronous motor offers highly consistent timing for precise climate control across multiple residential or light commercial zones.
Key Benefits- Fail-Safe Infrastructure: The normally-open spring return motor prevents total system pressure spikes by opening if power is interrupted.
- Durable Construction: Features an extruded aluminum frame and blades with an extruded blade seal for long-term durability and quiet operation.
- Fast Installation: The two-wire damper design simplifies field wiring and integrates seamlessly with standard HVAC zoning panels.
- Precision Airflow: Parallel blade action and built-in adjustable range stops allow for fine-tuning of minimum and maximum air positions.
Is the motor replaceable on this zone damper?
Yes, the synchronous motor is a field-replaceable component, typically mounted on the side for easy access without removing the damper from the rectangular ductwork.
What is the maximum static pressure rating for this unit?
The Resideo ZD series is rated for a maximum static pressure of 1.0 inch WC, making it compatible with most high-static residential air handlers.
Which zoning systems are compatible with the ZD12X16TZ?
This 24V zone damper is compatible with the Honeywell Home TrueZONE system, as well as most third-party zoning controllers that support two-wire, power-close/spring-open actuators.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $235.24
-65%$235.24
$82.33Resideo ZD12X16TZ Damper
The Resideo ZD12X16TZ is a professional-grade 12" Wide X 16" High Parallel Blade Zone Damper designed for high-performance forced air zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this unit ensures a low leakage performance (less than 1% at 0.5 in. WC) while maintaining structural integrity in high-velocity applications. The integrated 24Vac synchronous motor is side-mounted on the 16-inch dimension, providing a reliable power closed/spring return open operation. This fail-safe configuration ensures the damper defaults to the open position during a power loss, maintaining critical airflow. Ideally suited for Honeywell TrueZONE and other 24V electronic zoning panels, the ZD12X16TZ/U features simplified wiring and a mechanical visual position indicator for rapid field diagnostics. Its synchronous motor offers highly consistent timing for precise climate control across multiple residential or light commercial zones.
Key Benefits- Fail-Safe Infrastructure: The normally-open spring return motor prevents total system pressure spikes by opening if power is interrupted.
- Durable Construction: Features an extruded aluminum frame and blades with an extruded blade seal for long-term durability and quiet operation.
- Fast Installation: The two-wire damper design simplifies field wiring and integrates seamlessly with standard HVAC zoning panels.
- Precision Airflow: Parallel blade action and built-in adjustable range stops allow for fine-tuning of minimum and maximum air positions.
Is the motor replaceable on this zone damper?
Yes, the synchronous motor is a field-replaceable component, typically mounted on the side for easy access without removing the damper from the rectangular ductwork.
What is the maximum static pressure rating for this unit?
The Resideo ZD series is rated for a maximum static pressure of 1.0 inch WC, making it compatible with most high-static residential air handlers.
Which zoning systems are compatible with the ZD12X16TZ?
This 24V zone damper is compatible with the Honeywell Home TrueZONE system, as well as most third-party zoning controllers that support two-wire, power-close/spring-open actuators.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
