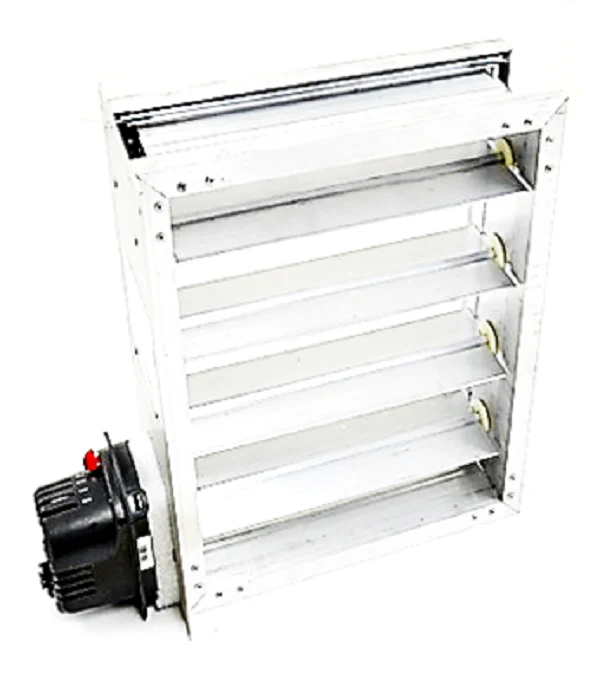

Resideo ZD12X14TZ Damper
The Resideo ZD12X14TZ is a high-performance 12" Wide X 14" High Parallel Blade Zone Damper designed for precision airflow management in forced air zoning systems. Built for professional HVAC contractors, this rectangular zone damper utilizes a 24Vac synchronous motor that provides fail-safe power closed/spring return open operation. Constructed from rugged extruded aluminum, the ZD12X14TZ damper features parallel blade action to ensure low leakage and optimal efficiency under static pressures up to 1.0 in. w.c. The 14-inch side-mounted actuator includes a mechanical visual position indicator and adjustable range stops, allowing for technical manual tuning of air volume during commissioning. Engineered for seamless integration with Honeywell Home TrueZONE panels, this two-position unit simplifies HVAC zone control through a straightforward M1 (Power) and M6 (Common) wiring configuration, with an optional M4 terminal for LED status monitoring.
Key Benefits for Technicians- Engineered Durability: Solid aluminum frame with Kevlar gearing significantly extends gear train life compared to standard plastic alternatives.
- Fail-Safe Logic: The normally open configuration ensures the zone receives airflow in the event of a power loss, preventing equipment freeze-up or overheating.
- Low Static Resistance: Parallel blades provide a streamlined airflow path when fully open, reducing noise and static pressure load on the blower motor.
- Efficient Install: Factory-assembled motor and linkage on the 14" side allow for rapid rectangular duct installation in either vertical or horizontal orientations.
- Is this damper compatible with non-Honeywell zone panels? Yes, provided the control board supplies a standard 24Vac signal and the current draw does not exceed the panel's VA rating (8VA per motor).
- Can I adjust the minimum airflow? Yes, the simplified range stops on the actuator allow you to set a minimum bleed position to maintain ventilation even when the zone is "closed."
- Where should I mount the motor? While versatile, it is recommended to mount the motor on the side or top of the ductwork in horizontal runs to prevent debris or moisture accumulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
