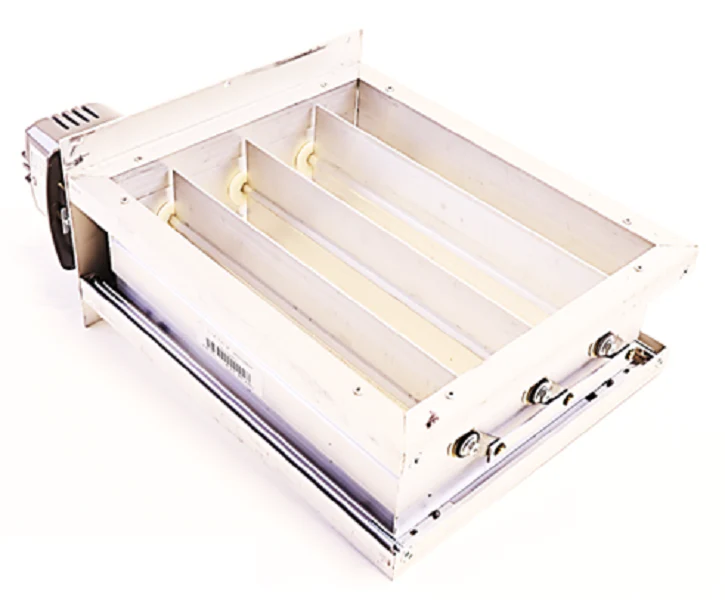

Resideo ZD12X10TZ Damper
The Resideo ZD12X10TZ is a 12" x 10" rectangular zone damper engineered for heavy-duty HVAC zoning systems. Built with a robust extruded aluminum frame and parallel blades, this unit provides high-efficiency airflow control with low leakage performance (rated under 1% at 0.5 in. WC). The built-in 24Vac synchronous motor is mounted on the 10-inch side and utilizes a power closed/spring return open configuration, ensuring a fail-safe normally-open position during power loss. With a 71 in-oz torque rating and integrated Kevlar gearing, this damper is designed for long-term cycling in demanding residential and light commercial environments. The TrueZONE damper also features adjustable range stops for precise air balancing and push-in terminals for fast, tool-free wiring. Technicians can quickly verify operation via the mechanical visual position indicator and the optional M4 terminal for LED status signaling.
Key Benefits- Engineered Durability: Solid extruded aluminum construction combined with all-metal drive train gears and Kevlar reinforcement.
- Fail-Safe Logic: Operates as normally open, securing maximum airflow if the control signal is interrupted.
- Precision Balancing: Features adjustable range stops to bleed air into zones, reducing static pressure and preventing system noise.
- Universal Installation: Flexible mounting design allows for installation in any orientation with a taping flange for a tight seal.
- High Torque Performance: The 71 in-oz motor handles high-velocity systems with a 30-second power close and 10-second spring return.
Is this damper compatible with non-Honeywell zone panels?
Yes, the ZD12X10TZ uses a standard 24V two-wire (M1 and M6) connection, making it compatible with most HVAC control panels that support power-closed/spring-open logic.
What happens if the motor fails?
Because this is a spring return open model, the blades will default to the open position, preventing a total loss of airflow to the zone and protecting the heat exchanger or evaporator coil.
Can the motor be moved to the other side?
The motor on this specific model is factory-mounted on the 10-inch side. For 12-inch side mounting, you must specify the corresponding ZD model where the second dimension is 12.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $212.75
