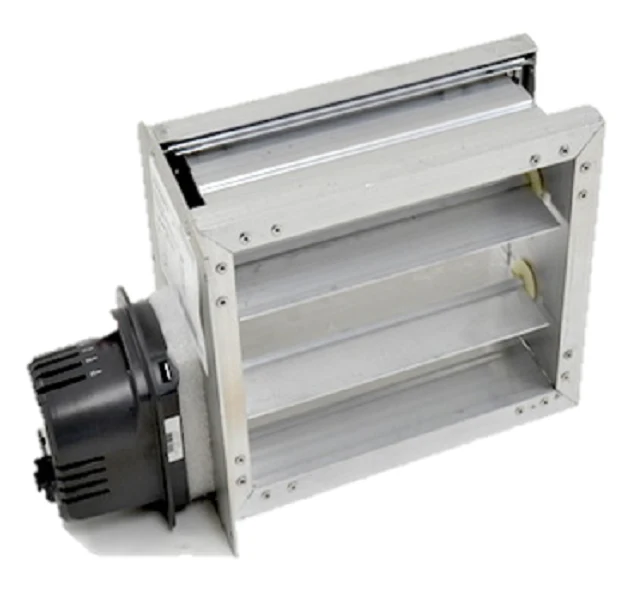

Resideo ZD10X8TZ Damper
The Resideo ZD10X8TZ is a 10" x 8" parallel blade zone damper designed for precision airflow management in forced-air zoning systems. Built with a heavy-duty extruded aluminum frame and blades, this rectangular damper features a 24Vac synchronous motor mounted on the 8-inch side for high-torque performance. This two-position damper operates as a power closed, spring return open (normally open) assembly, ensuring fail-safe airflow during power outages. It integrates seamlessly with Honeywell Home TrueZONE panels and other electronic zoning controllers, providing low-leakage performance to maximize HVAC system efficiency. The motor features simplified range stops and a mechanical visual position indicator for rapid site verification. Its parallel blade configuration and 2-wire installation simplify ductwork zoning for contractors, while the spring return mechanism ensures the default state is open to prevent static pressure spikes in the cooling or heating equipment upon controller failure.
Product Features- Fail-Safe Operation: The normally open spring return design keeps the HVAC damper open if power is lost, protecting the system from overheating or freezing.
- Rugged Construction: Features extruded aluminum blades and frame, resisting corrosion and ensuring low-leakage integrity in high-velocity systems.
- Zone Panel Compatibility: Designed for 24V HVAC zoning, compatible with Honeywell TrueZONE and other electronic zone controllers.
- Contractor-Friendly Installation: Simplified 2-wire motor connection (M1 and M6) with an optional third terminal (M4) for LED status indication.
- Reliable Actuation: The synchronous 24Vac motor provides consistent torque and includes a mechanical visual position indicator for easy troubleshooting.
Is the motor replaceable on the ZD10X8TZ?
Yes, the 24V synchronous motor can be swapped out if necessary without removing the entire damper assembly from the ductwork.
What is the difference between power closed and power open?
This model is Power Closed/Spring Return Open, meaning it requires 24V signal to close and defaults to the open position when de-energized, making it ideal for the primary cooling/heating zone.
Can this damper be mounted in any orientation?
The ZD10X8TZ damper can be installed in any position within the ductwork, provided the motor is accessible for wiring and visual inspection of the mechanical indicator.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
