Resideo ZD10X28TZ Damper

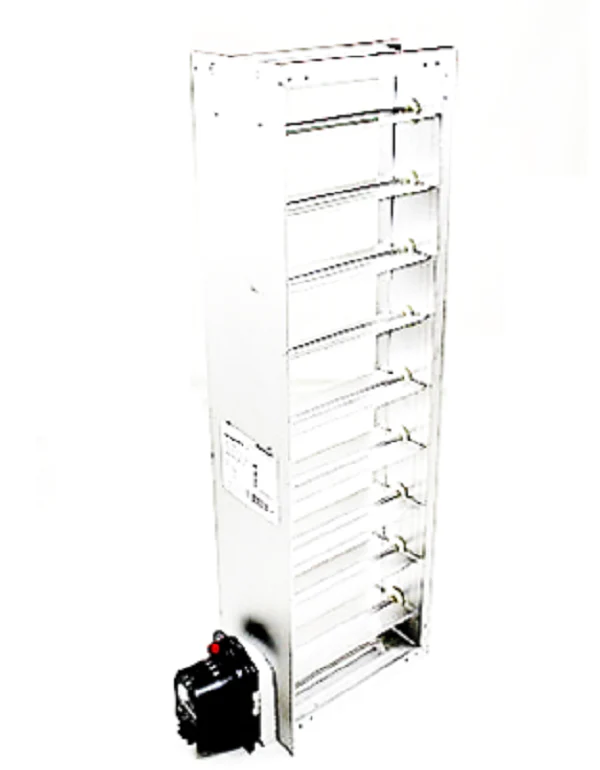

The Resideo ZD10X28TZ Damper is a professional-grade HVAC zone damper engineered for high-performance airflow management in rectangular ductwork. Built with a heavy-duty extruded aluminum frame and dual-wall parallel blades, this 28-inch wide by 10-inch high assembly ensures minimal pressure drop and low leakage in demanding forced air zoning applications. The unit features a factory-mounted 24V spring return motor designed for power-closed, spring-open (normally open) operation. This configuration is essential for fail-safe performance, ensuring maximum airflow if control power is lost. The synchronous motor provides a consistent 30-second closing cycle and a rapid 10-second spring return, making it a reliable choice for HVAC contractors integrating with Resideo TrueZONE panels and other standard 24VAC zoning systems. The actuator is conveniently mounted on the 28-inch side and includes a mechanical visual position indicator and adjustable range stops to fine-tune ventilation control and balance static pressure across the system.
Key Benefits for HVAC Professionals- Rugged Construction: Utilizing an extruded aluminum frame with riveted and screwed corners for maximum structural integrity in high-velocity systems.
- Efficient Airflow: The parallel blade design and extruded blade seals significantly reduce bypass leakage (less than 1% at 0.5 in. WC), improving overall energy-efficient HVAC installation.
- Fail-Safe Reliability: Power-closed spring-return logic ensures the damper defaults to the open position, protecting heat exchangers and coils from high-limit trips during power failures.
- Easy Integration: Simplified 2-wire installation with push-terminal connections compatible with Resideo TrueZONE and most 24V zone control boards.
- Adjustable Performance: Integrated range stops allow for precise minimum/maximum blade positioning to manage ductwork static pressure without specialized tools.
Can this damper be installed in any orientation?
Yes, the Resideo ZD series is designed for multi-poise mounting, allowing installation on the side or bottom of the ductwork. However, the motor is always factory-mounted on the second dimension provided (the 28-inch side in this case).
Is this damper compatible with variable speed blowers?
This 24V zone damper is fully compatible with variable-speed HVAC systems when used alongside a proper zone control panel that manages static pressure through bypass or staging.
What wiring is required for this actuator?
The motor operates on a standard 24VAC 60Hz signal. It typically uses two-wire terminals (M1 for power and M6 for common). An optional M4 terminal is available on some models for LED status indication.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $339.71
-65%$339.71
$118.90Resideo ZD10X28TZ Damper
The Resideo ZD10X28TZ Damper is a professional-grade HVAC zone damper engineered for high-performance airflow management in rectangular ductwork. Built with a heavy-duty extruded aluminum frame and dual-wall parallel blades, this 28-inch wide by 10-inch high assembly ensures minimal pressure drop and low leakage in demanding forced air zoning applications. The unit features a factory-mounted 24V spring return motor designed for power-closed, spring-open (normally open) operation. This configuration is essential for fail-safe performance, ensuring maximum airflow if control power is lost. The synchronous motor provides a consistent 30-second closing cycle and a rapid 10-second spring return, making it a reliable choice for HVAC contractors integrating with Resideo TrueZONE panels and other standard 24VAC zoning systems. The actuator is conveniently mounted on the 28-inch side and includes a mechanical visual position indicator and adjustable range stops to fine-tune ventilation control and balance static pressure across the system.
Key Benefits for HVAC Professionals- Rugged Construction: Utilizing an extruded aluminum frame with riveted and screwed corners for maximum structural integrity in high-velocity systems.
- Efficient Airflow: The parallel blade design and extruded blade seals significantly reduce bypass leakage (less than 1% at 0.5 in. WC), improving overall energy-efficient HVAC installation.
- Fail-Safe Reliability: Power-closed spring-return logic ensures the damper defaults to the open position, protecting heat exchangers and coils from high-limit trips during power failures.
- Easy Integration: Simplified 2-wire installation with push-terminal connections compatible with Resideo TrueZONE and most 24V zone control boards.
- Adjustable Performance: Integrated range stops allow for precise minimum/maximum blade positioning to manage ductwork static pressure without specialized tools.
Can this damper be installed in any orientation?
Yes, the Resideo ZD series is designed for multi-poise mounting, allowing installation on the side or bottom of the ductwork. However, the motor is always factory-mounted on the second dimension provided (the 28-inch side in this case).
Is this damper compatible with variable speed blowers?
This 24V zone damper is fully compatible with variable-speed HVAC systems when used alongside a proper zone control panel that manages static pressure through bypass or staging.
What wiring is required for this actuator?
The motor operates on a standard 24VAC 60Hz signal. It typically uses two-wire terminals (M1 for power and M6 for common). An optional M4 terminal is available on some models for LED status indication.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
