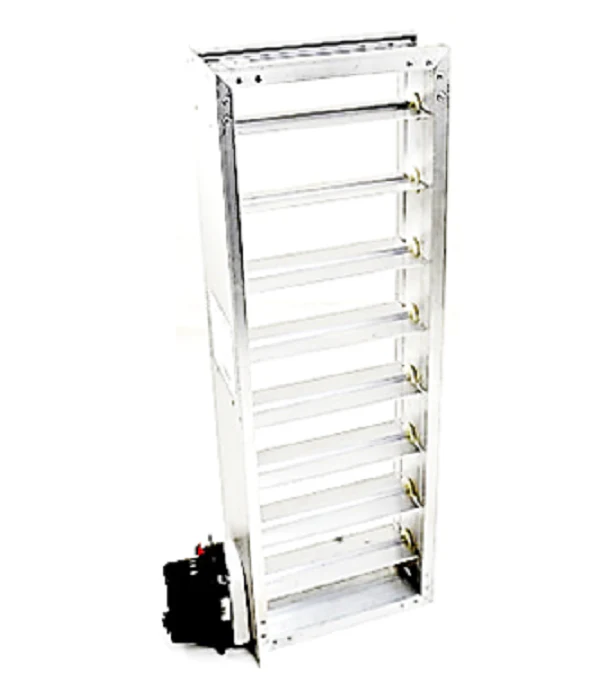

Resideo ZD10X26TZ Damper
The Resideo ZD10X26TZ is a professional-grade parallel blade zone damper designed for high-performance airflow management in residential and commercial forced air zoning systems. Built with a rugged extruded aluminum frame and blades, this 10" x 26" rectangular unit utilizes a 24Vac synchronous motor mounted on the 26-inch side for reliable operation. As a power closed/spring return open (PC/SRO) model, it serves as a fail-safe solution that ensures air circulation remains unrestricted in the event of a power loss. The parallel blade design provides low-leakage performance, while the integrated Kevlar gearing significantly extends the service life of the drive train, making it a preferred choice for Honeywell TrueZONE and other 24V networked zoning panels.
Engineered for versatility, the ZD10X26TZ damper features a multi-poise synchronous motor that allows for installation in any orientation within a squared air duct. The motor includes a mechanical visual position indicator to verify damper status at a glance and adjustable range stops to fine-tune closed-position airflow. With a timing of 30 seconds for power closure and a 10-second spring return, this damper ensures rapid, quiet response to zone calls. The heavy-duty extruded aluminum construction resists corrosion, ensuring structural integrity even in high-velocity HVAC environments.
- Fail-Safe Operation: Spring return open design ensures maximum airflow if power is interrupted.
- Low Leakage Performance: Parallel blades provide tight shutoff to prevent temperature bleed between zones.
- Enhanced Durability: All-metal drive train with Kevlar gearing reduces friction and mechanical wear.
- Flexible Installation: Can be mounted in any orientation; motor is factory-installed on the 26-inch side.
- Precision Control: Features adjustable range stops and a visual indicator for easy commissioning.
Common Questions
Can this damper be used for fresh air intake?
No, the ZD series is specifically designed for zoning applications and is configured for power-closed/spring-open operation. For fresh air applications requiring power-open functionality, consider the EARD or ARD series models.
What is the maximum static pressure rating for this unit?
The Resideo ZD10X26TZ is rated for operation in systems with a maximum static pressure of up to 1.0 in. wc.
How should this damper be sized for the ductwork?
ZD dampers are manufactured approximately 5/32" smaller than their nominal dimensions (10" x 26") to ensure a proper fit without binding. Ensure the duct is square and at least three feet from the plenum to minimize turbulence.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
