Resideo ZD10X24TZ Damper

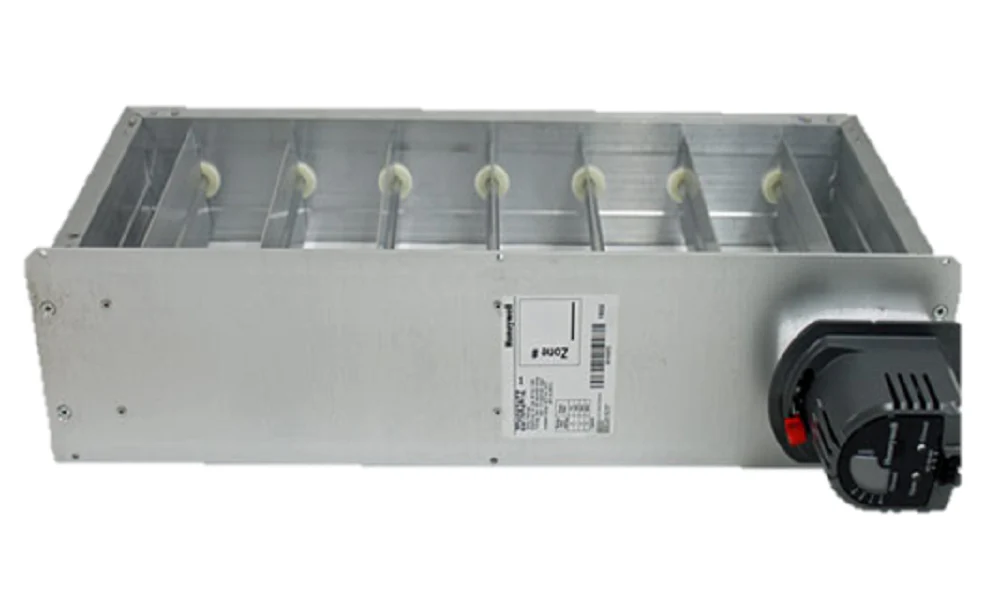

The Resideo ZD10X24TZ is a professional-grade parallel blade zone damper designed for high-performance forced-air zoning applications. Built with a heavy-duty extruded aluminum frame and blades, this 10" x 24" rectangular unit ensures structural integrity and low leakage performance (rated at less than 1% at 0.5 in. WC). The system utilizes a 24VAC synchronous motor mounted on the 24-inch side, providing a power closed/spring return open fail-safe operation. This configuration is essential for HVAC zoning systems where maintaining airflow during power loss is critical.
Installation is streamlined via a two-wire motor interface with push-terminal connections, featuring a mechanical visual position indicator for rapid status verification. The parallel blade action and adjustable range stops allow for precise airflow calibration and minimal pressure drop, typically around 0.0329 in. WC at 800 FPM. This damper is fully compatible with Honeywell TrueZONE panels and most standard 24V electronic zoning controllers. The side-mount actuator design provides a slim profile, making it the preferred choice for 10x24 ductwork installations requiring a normally-open state for safety.
- High-Efficiency Sealing: Parallel blades provide a tight seal with less than 1% leakage, maximizing energy efficiency across zones.
- Robust 24V Actuator: The synchronous motor delivers 71 in-oz of torque with spring return fail-safe to the open position.
- Contractor-Friendly Installation: Simplified 2-wire wiring and a front-facing LED indicator (terminal M4) reduce troubleshooting time.
- Durable Construction: Features extruded aluminum blades and reinforced internal gears designed to withstand high-static environments up to 1 in. WC.
Common Questions
Can the motor be moved to the 10-inch side?
No, the ZD10X24TZ is factory-configured with the actuator mounted on the 24-inch side. If your application requires a 10-inch mount, you must specify the reverse dimensions when ordering.
What is the difference between power closed and power open models?
This model is Power Closed/Spring Return Open (normally open). It requires a constant 24VAC signal to stay closed. Upon power loss, the internal spring forces the blades to the open position to prevent coil freeze-ups or high-limit trips.
Is a bypass damper required with this unit?
While the parallel blade design is highly efficient, a bypass damper is recommended for systems with fewer zones to manage excess static pressure when many dampers are closed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $250.89
-65%$250.89
$87.81Resideo ZD10X24TZ Damper
The Resideo ZD10X24TZ is a professional-grade parallel blade zone damper designed for high-performance forced-air zoning applications. Built with a heavy-duty extruded aluminum frame and blades, this 10" x 24" rectangular unit ensures structural integrity and low leakage performance (rated at less than 1% at 0.5 in. WC). The system utilizes a 24VAC synchronous motor mounted on the 24-inch side, providing a power closed/spring return open fail-safe operation. This configuration is essential for HVAC zoning systems where maintaining airflow during power loss is critical.
Installation is streamlined via a two-wire motor interface with push-terminal connections, featuring a mechanical visual position indicator for rapid status verification. The parallel blade action and adjustable range stops allow for precise airflow calibration and minimal pressure drop, typically around 0.0329 in. WC at 800 FPM. This damper is fully compatible with Honeywell TrueZONE panels and most standard 24V electronic zoning controllers. The side-mount actuator design provides a slim profile, making it the preferred choice for 10x24 ductwork installations requiring a normally-open state for safety.
- High-Efficiency Sealing: Parallel blades provide a tight seal with less than 1% leakage, maximizing energy efficiency across zones.
- Robust 24V Actuator: The synchronous motor delivers 71 in-oz of torque with spring return fail-safe to the open position.
- Contractor-Friendly Installation: Simplified 2-wire wiring and a front-facing LED indicator (terminal M4) reduce troubleshooting time.
- Durable Construction: Features extruded aluminum blades and reinforced internal gears designed to withstand high-static environments up to 1 in. WC.
Common Questions
Can the motor be moved to the 10-inch side?
No, the ZD10X24TZ is factory-configured with the actuator mounted on the 24-inch side. If your application requires a 10-inch mount, you must specify the reverse dimensions when ordering.
What is the difference between power closed and power open models?
This model is Power Closed/Spring Return Open (normally open). It requires a constant 24VAC signal to stay closed. Upon power loss, the internal spring forces the blades to the open position to prevent coil freeze-ups or high-limit trips.
Is a bypass damper required with this unit?
While the parallel blade design is highly efficient, a bypass damper is recommended for systems with fewer zones to manage excess static pressure when many dampers are closed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
