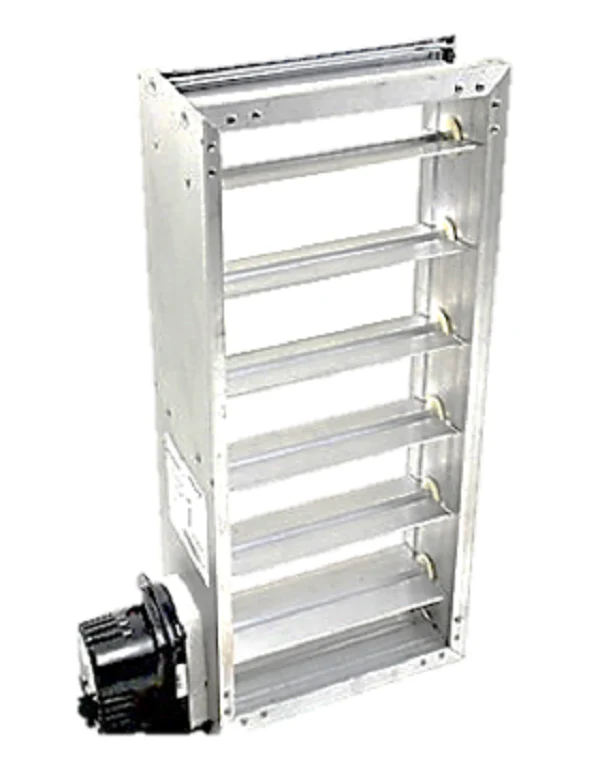

Resideo ZD10X20TZ Damper
Professional-grade zoning requires reliability, and the Resideo ZD10X20TZ delivers with a heavy-duty parallel blade zone damper design. Engineered for high-performance HVAC zoning systems, this 20-inch by 10-inch rectangular unit features a 24Vac synchronous motor mounted on the 20-inch side for streamlined installation. The power closed spring return open configuration ensures a fail-safe normally-open state, maintaining airflow if power is lost. Constructed from extruded aluminum with a reinforced frame, the ZD10X20TZ provides a low-leakage seal (less than 1% at 0.5 in. WC) to maximize forced air zoning efficiency. The integrated mechanical visual position indicator allows for rapid terminal inspections, while the simple two-wire lead setup facilitates fast integration with TrueZONE panels and other 24V controllers. With a 71 in-oz torque rating and a max static pressure of 1.0 in. WC, this rectangular zone damper is the preferred choice for contractors demanding precision air management and long-term mechanical durability in residential and light commercial applications.
Key Benefits
- Fail-Safe Operation: The power closed spring return open motor ensures the system defaults to an open position during power interruptions.
- High-Efficiency Seal: Parallel blade design with extruded aluminum construction limits leakage to less than 1% at standard operating pressures.
- Streamlined Installation: Designed for an HVAC duct size of 10" x 20", featuring a simple 2-wire terminal block and flexible mounting orientations.
- Diagnostic Accuracy: Built-in mechanical visual position indicator provides instant confirmation of damper status without needing a multimeter.
- Robust Performance: Rated for static pressures up to 1.0 in. WC and temperatures from 40°F to 140°F, ideal for rigorous zone control demands.
Common Questions
Can the motor be moved to the 10-inch side?
No, for the Resideo ZD10X20TZ, the motor is factory-mounted on the 20-inch side (dimension 2). If your application requires mounting on the 10-inch side, you must order the ZD20X10TZ model.
Is this damper compatible with third-party zoning panels?
Yes, while optimized for Honeywell Home TrueZONE systems, this 24V zone damper is compatible with most 24Vac electronic zoning controllers that support two-wire, power-closed/spring-return-open logic.
What happens if the internal motor fails?
The synchronous motor is engineered for high cycle counts, but the internal spring mechanism provides a mechanical return to the open position, ensuring the zone is not permanently starved of air during a component failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $232.42
-65%$232.42
$81.35Resideo ZD10X20TZ Damper
Professional-grade zoning requires reliability, and the Resideo ZD10X20TZ delivers with a heavy-duty parallel blade zone damper design. Engineered for high-performance HVAC zoning systems, this 20-inch by 10-inch rectangular unit features a 24Vac synchronous motor mounted on the 20-inch side for streamlined installation. The power closed spring return open configuration ensures a fail-safe normally-open state, maintaining airflow if power is lost. Constructed from extruded aluminum with a reinforced frame, the ZD10X20TZ provides a low-leakage seal (less than 1% at 0.5 in. WC) to maximize forced air zoning efficiency. The integrated mechanical visual position indicator allows for rapid terminal inspections, while the simple two-wire lead setup facilitates fast integration with TrueZONE panels and other 24V controllers. With a 71 in-oz torque rating and a max static pressure of 1.0 in. WC, this rectangular zone damper is the preferred choice for contractors demanding precision air management and long-term mechanical durability in residential and light commercial applications.
Key Benefits
- Fail-Safe Operation: The power closed spring return open motor ensures the system defaults to an open position during power interruptions.
- High-Efficiency Seal: Parallel blade design with extruded aluminum construction limits leakage to less than 1% at standard operating pressures.
- Streamlined Installation: Designed for an HVAC duct size of 10" x 20", featuring a simple 2-wire terminal block and flexible mounting orientations.
- Diagnostic Accuracy: Built-in mechanical visual position indicator provides instant confirmation of damper status without needing a multimeter.
- Robust Performance: Rated for static pressures up to 1.0 in. WC and temperatures from 40°F to 140°F, ideal for rigorous zone control demands.
Common Questions
Can the motor be moved to the 10-inch side?
No, for the Resideo ZD10X20TZ, the motor is factory-mounted on the 20-inch side (dimension 2). If your application requires mounting on the 10-inch side, you must order the ZD20X10TZ model.
Is this damper compatible with third-party zoning panels?
Yes, while optimized for Honeywell Home TrueZONE systems, this 24V zone damper is compatible with most 24Vac electronic zoning controllers that support two-wire, power-closed/spring-return-open logic.
What happens if the internal motor fails?
The synchronous motor is engineered for high cycle counts, but the internal spring mechanism provides a mechanical return to the open position, ensuring the zone is not permanently starved of air during a component failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
