Resideo ZD10X18TZ Damper

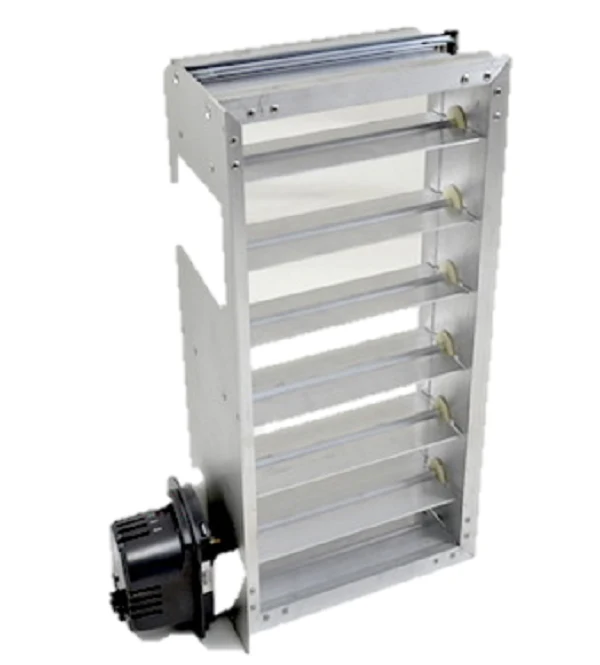

The Resideo ZD10X18TZ is a professional-grade 10" Wide X 18" High Parallel Blade Zone Damper engineered for heavy-duty performance in forced air systems. As a 24VAC power closed/spring return open unit, it ensures a fail-safe open position during power loss, maintaining critical airflow. This rectangular zone damper features a parallel blade action and Kevlar gearing, which significantly reduces mechanical wear compared to standard competitive models. The synchronous motor is side-mounted on the 18-inch dimension, providing high-torque operation capable of handling up to 1.0 in. wc static pressure. Constructed with a solid extruded aluminum frame and blades, the ZD10X18TZ/U offers superior corrosion resistance and low-leakage performance. This two-position damper integrates seamlessly with Honeywell TrueZONE panels and other electronic zoning systems, utilizing a simple two-wire installation and mechanical visual position indicators for rapid field diagnostics.
Key Benefits:- Fail-Safe Operation: The spring return open configuration ensures the damper defaults to the open position if 24V power is interrupted.
- Enhanced Durability: Kevlar-reinforced gearing and a rugged extruded aluminum construction provide long-term reliability in high-cycle environments.
- Precision Airflow: Parallel blade design minimizes air bypass and ensures tight seals for HVAC zone control.
- Contractor-Friendly Install: Features adjustable range stops and a two-wire motor connection for quick synchronization with zoning system controllers.
Is the Resideo ZD10X18TZ compatible with any zone control panel?
Yes, while optimized for Honeywell Home TrueZONE systems, this 24V zone damper is compatible with most forced air zoning systems that support two-wire power-close/spring-open actuators.
Can this damper be installed horizontally or vertically?
The ZD10X18TZ is designed for flexible installation; it can be mounted in any orientation within the ductwork, provided the synchronous motor remains accessible for wiring and maintenance.
How do I verify if the damper is open or closed?
The unit includes an integrated mechanical visual position indicator on the motor assembly, allowing technicians to verify the actual blade status at a glance without dismantling the duct.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $235.24
-65%$235.24
$82.33Resideo ZD10X18TZ Damper
The Resideo ZD10X18TZ is a professional-grade 10" Wide X 18" High Parallel Blade Zone Damper engineered for heavy-duty performance in forced air systems. As a 24VAC power closed/spring return open unit, it ensures a fail-safe open position during power loss, maintaining critical airflow. This rectangular zone damper features a parallel blade action and Kevlar gearing, which significantly reduces mechanical wear compared to standard competitive models. The synchronous motor is side-mounted on the 18-inch dimension, providing high-torque operation capable of handling up to 1.0 in. wc static pressure. Constructed with a solid extruded aluminum frame and blades, the ZD10X18TZ/U offers superior corrosion resistance and low-leakage performance. This two-position damper integrates seamlessly with Honeywell TrueZONE panels and other electronic zoning systems, utilizing a simple two-wire installation and mechanical visual position indicators for rapid field diagnostics.
Key Benefits:- Fail-Safe Operation: The spring return open configuration ensures the damper defaults to the open position if 24V power is interrupted.
- Enhanced Durability: Kevlar-reinforced gearing and a rugged extruded aluminum construction provide long-term reliability in high-cycle environments.
- Precision Airflow: Parallel blade design minimizes air bypass and ensures tight seals for HVAC zone control.
- Contractor-Friendly Install: Features adjustable range stops and a two-wire motor connection for quick synchronization with zoning system controllers.
Is the Resideo ZD10X18TZ compatible with any zone control panel?
Yes, while optimized for Honeywell Home TrueZONE systems, this 24V zone damper is compatible with most forced air zoning systems that support two-wire power-close/spring-open actuators.
Can this damper be installed horizontally or vertically?
The ZD10X18TZ is designed for flexible installation; it can be mounted in any orientation within the ductwork, provided the synchronous motor remains accessible for wiring and maintenance.
How do I verify if the damper is open or closed?
The unit includes an integrated mechanical visual position indicator on the motor assembly, allowing technicians to verify the actual blade status at a glance without dismantling the duct.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
