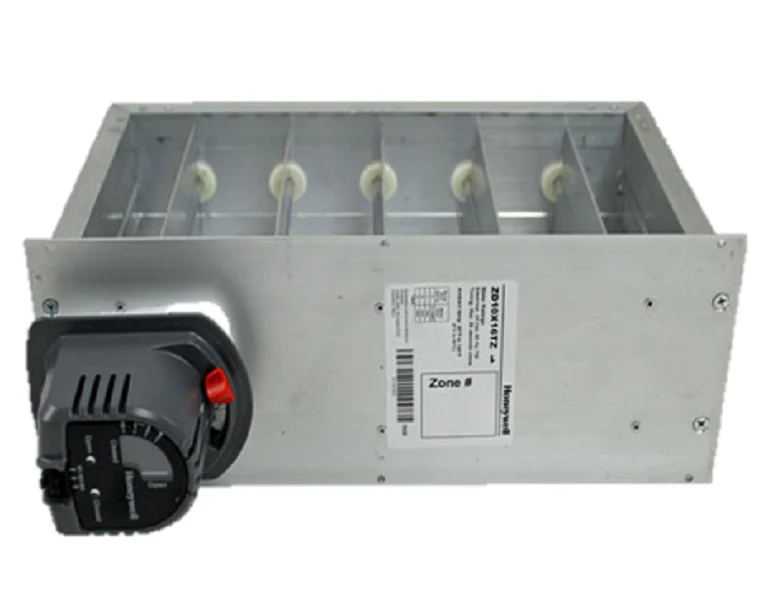

Resideo ZD10X16TZ Damper
The Resideo ZD10X16TZ Damper is a professional-grade 10x16 parallel blade zone damper engineered for high-static pressure applications. Built with an extruded aluminum frame and blades, this 24Vac zone damper utilizes a power closed/spring return open configuration, making it a reliable fail-safe solution that defaults to the open position during power loss. The synchronous motor is side-mounted on the 16-inch dimension, featuring a high-torque 71 in-oz actuator designed for TrueZone systems and other standard 24V zoning panels. This rectangular HVAC damper provides a tight seal with less than 1% leakage at 0.5 in. WC, ensuring precise airflow control and improved energy efficiency. Contractors can rely on the mechanical visual position indicator for rapid diagnostic checks on-site. The parallel blade alignment ensures uniform air distribution, while the two-wire installation allows for quick integration into existing residential HVAC zoning layouts without the need for complex rewiring.
Key Benefits
- Precision Airflow Control: Parallel blade design ensures low leakage performance and balanced air distribution across the ductwork.
- Fail-Safe Operation: The spring return open mechanism ensures the zone remains ventilated during power interruptions or system failures.
- Durable Construction: Heavy-duty extruded aluminum frame resists corrosion and maintains structural integrity in high-velocity air streams.
- Simplified Diagnostics: Integrated LED and mechanical indicators allow for real-time damper status monitoring during maintenance.
- Universal 24V Compatibility: Designed for seamless Honeywell TrueZone panel integration and standard 24Vac HVAC control circuits.
Common Questions
Is the motor on the Resideo ZD10X16TZ field-replaceable?
Yes, the synchronous motor is designed for direct replacement in the field. Technicians can easily swap the actuator by loosening the coupling set screw, minimizing system downtime.
Can this damper be installed in any orientation?
The ZD10X16TZ can be mounted in any orientation within the duct; however, the motor is factory-mounted on the 16-inch side. Ensure there is adequate clearance for the side-mounted actuator during installation.
What is the power requirement for multiple dampers on one zone?
The motor draws approximately 8 VA. When wiring multiple ZD series dampers in parallel, ensure the total VA draw does not exceed the capacity of the 24V transformer servicing the zone panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
