Resideo ZD10X14TZ Damper

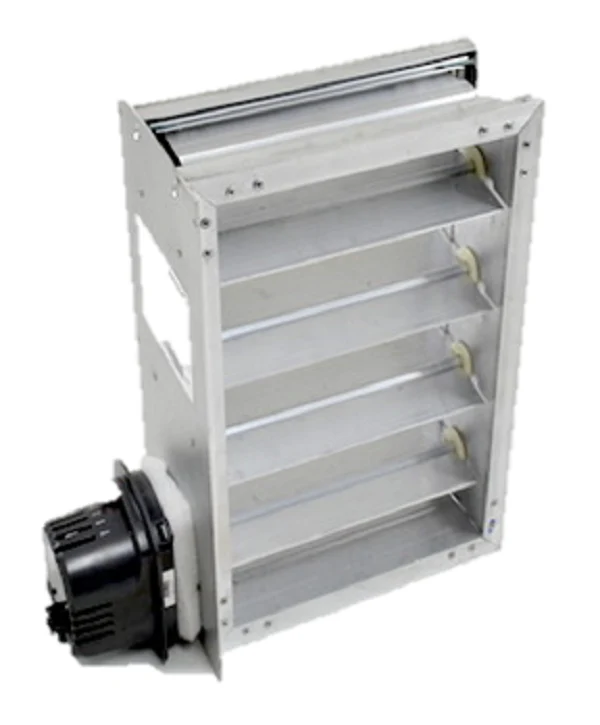

For professional zoning applications requiring reliable airflow control, the Resideo ZD10X14TZ provides a robust, fail-safe solution. This 10" Wide X 14" High rectangular zone damper is engineered with a solid extruded aluminum frame and parallel blades, ensuring high-cycle durability and low-leakage performance in high-velocity systems. As a power closed spring return open model, it utilizes a 24Vac synchronous motor to drive the blades closed when energized, automatically returning to the open position during power loss or de-energization to prevent static pressure buildup.
The ZD10X14TZ features a side-mounted motor on the 14-inch dimension, optimizing it for specific ductwork profiles and tight installation clearances. Designed for seamless integration with Honeywell Home TrueZONE panels, this low leakage zone damper supports precise multi-zone temperature control. The two-position actuator includes a mechanical visual position indicator, allowing technicians to verify damper status at a glance. Built for forced-air environments, it handles up to 1.0" wc static pressure and operates efficiently in ambient temperatures between 40°F and 140°F.
Key Benefits
- Fail-Safe Operation: The spring-return mechanism ensures a normally-open state, maintaining critical airflow if power is interrupted.
- Precision Engineering: Parallel blade design and extruded aluminum construction minimize bypass leakage for maximum efficiency.
- Ease of Installation: Simple two-wire 24V motor connection with optional M4 terminal for LED status monitoring.
- HVAC Compatibility: Fully compatible with Resideo zoning systems and a variety of 24Vac electronic zone control boards.
Common Questions
Can I install this damper in any orientation?
Yes, the Resideo ZD series is designed for multi-poise mounting, meaning it can be installed in any orientation along the bottom or side of the ductwork.
Is the motor replaceable if it fails?
The synchronous motor is a field-replaceable component (typically using the M847D-ZONE actuator), allowing for maintenance without removing the entire damper frame from the duct.
What is the typical timing for opening and closing?
Under standard load, the unit typically closes in 30 seconds when powered and returns to the open position in approximately 10 seconds via the spring return.
This item is not eligible for free shipping.
