Resideo ZD10X12TZ Damper

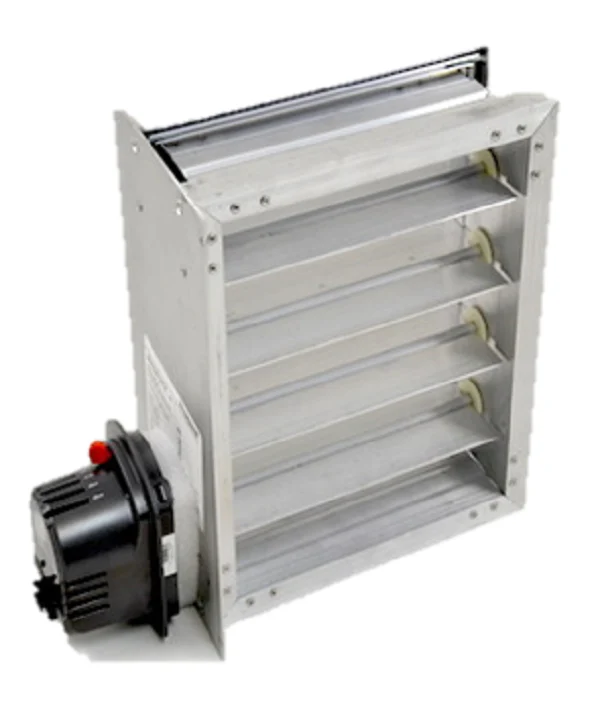

The Resideo ZD10X12TZ (part of the Honeywell Home TrueZONE series) is a heavy-duty 10" Wide x 12" High parallel blade zone damper designed for high-performance airflow management in residential and light commercial forced-air systems. This rectangular zone control damper features a 24VAC synchronous motor that provides a power closed/spring return open operation (normally-open), ensuring fail-safe airflow during power interruptions. Built with an extruded aluminum frame and blades, it supports maximum static pressures up to 1.0" WC with a low-leakage parallel blade design that maintains less than 1% leakage at 0.5" WC. The actuator is side-mounted on the 12-inch dimension and includes a mechanical visual position indicator for rapid status diagnostics in the field.
- Fail-Safe Operation: The normally-open spring return configuration ensures the damper defaults to the open position if power is lost, preventing system overheating or excessive static pressure.
- Rugged Construction: Utilizing extruded aluminum blades and a reinforced frame, this low-leakage damper is engineered for longevity in high-velocity duct environments.
- Simplified Wiring: Features easy-to-access terminals for 2-wire or 3-wire 24V HVAC zoning setups, making it compatible with the Resideo TrueZONE panel and most major 24V zoning systems.
- Precise Control: Equipped with parallel blade action for efficient throttling and a synchronous motor rated for 71 inch-ounces of torque to handle high-static conditions without binding.
Common Questions About the ZD10X12TZ
How do I confirm the motor mounting side?
For the Resideo ZD series, the motor is factory-mounted on the second dimension listed. For the ZD10X12TZ, the 24V synchronous motor is mounted on the 12-inch side. It can be installed in any orientation but requires 3 feet of clearance from the furnace plenum.
Is this damper compatible with 3-wire systems?
Yes. While it is a 2-wire power closed spring return damper, you can access the M4 terminal by breaking the plastic tab for optional LED indication or integration into specific 3-wire control circuits.
What is the fail-safe state of this unit?
The ZD10X12TZ is power closed. Without 24VAC power, the internal spring mechanism returns the parallel blades to the fully open position to maintain air circulation.
