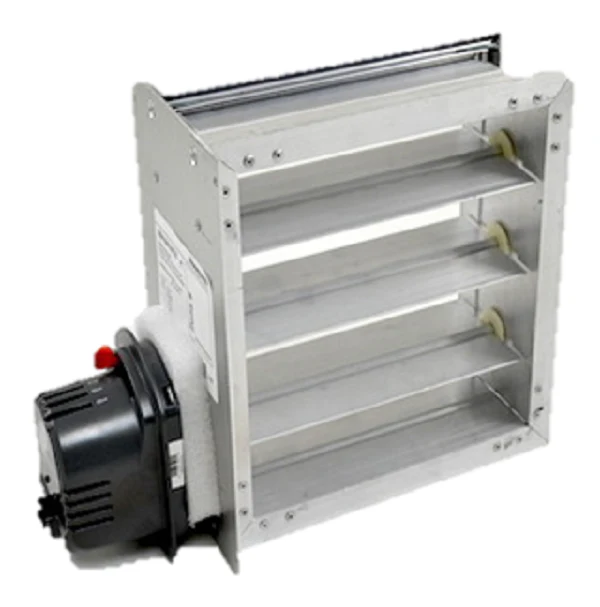

Resideo ZD10X10TZ Damper
The Resideo ZD10X10TZ is a professional-grade 10x10 rectangular zone damper engineered for high-performance climate control in residential and light commercial HVAC systems. This parallel blade zone damper features a heavy-duty extruded aluminum frame and blades, ensuring a rigid structure that resists bowing under high static pressure. Operating on a standard 24Vac synchronous motor, the unit utilizes a power closed/spring return open logic, providing a fail-safe air path during power interruptions. As the direct replacement for ND-RSD-10X10, it maintains seamless compatibility with Honeywell Home TrueZONE panels and most electronic zoning interfaces. The synchronous actuator delivers two-position control with approximately 30-second drive times and a 10-second spring return, providing precise airflow management through parallel blade action to minimize leakage. Designed for the field technician, the motor includes a mechanical visual position indicator and simplified range stops for easy balancing and troubleshooting.
Key Benefits- Rugged Construction: Built with an extruded aluminum frame and blades to ensure long-term reliability in high-cycle forced air applications.
- Fail-Safe Operation: The normally open damper configuration ensures airflow is not restricted if the control signal or power is lost.
- Precision Airflow: Features parallel blade design for tighter seals and lower pressure drops compared to standard residential models.
- Ease of Installation: Simple two-wire motor connection (M1 and M6) reduces labor time on HVAC zoning system retrofits.
- Direct Retrofit: Engineered as a drop-in replacement for the discontinued ND-RSD-10X10, requiring no ductwork modifications.
Is the ZD10X10TZ compatible with older Honeywell zone panels?
Yes, this 24V motorized damper is designed to work with all TrueZONE panels (HZ432, HZ322, HZ311) and most vintage 24Vac zoning controls.
Can I adjust the closed position to allow for minimum airflow?
Yes, the synchronous motor includes adjustable range stops that allow you to set a minimum open position for bypass requirements or ventilation.
Which side is the motor mounted on?
In the ZD10X10TZ, the motor is mounted on the second dimension (10-inch) side. However, the design allows for multi-orientation installation in any vertical or horizontal duct run.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
