Resideo YTHX9421R5101WW Stat

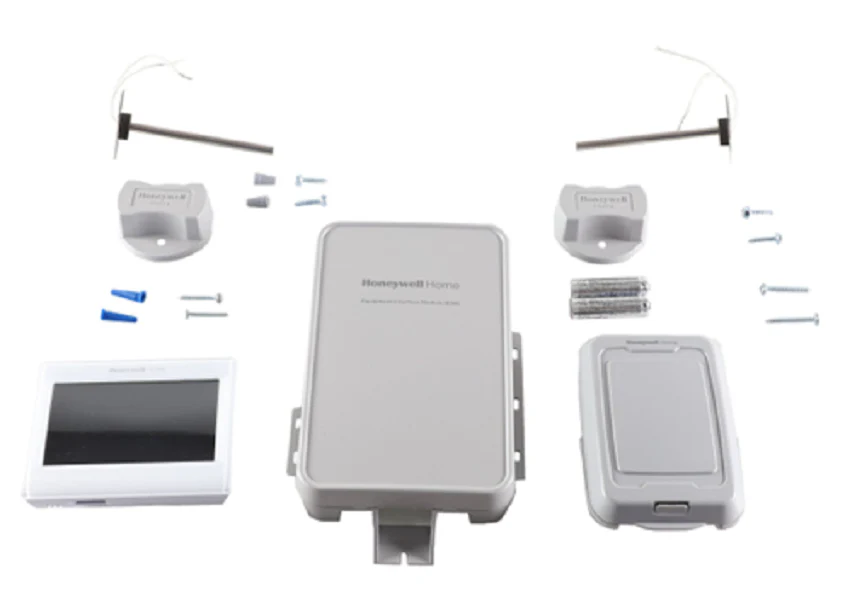

The Resideo YTHX9421R5101WW Prestige IAQ Kit is a high-performance 2-wire thermostat system engineered for demanding residential and light commercial applications. Utilizing RedLINK wireless technology, this kit simplifies complex installations by requiring only two wires at the thermostat head, with all primary equipment connections made at the included Equipment Interface Module (EIM). This configuration supports high-stage functionality, managing up to 4H/2C heat pump or 3H/2C conventional systems. The high-definition color touchscreen provides intuitive navigation for 7-day programming and integrated control of humidification, dehumidification, and ventilation via three sets of universal IAQ contacts.
Designed for precision, the YTHX9421R5101WW features Delta T diagnostics and alerts, utilizing the included discharge and return air duct sensors to monitor system performance in real-time. The wireless outdoor sensor enables advanced balance point control and ensures accurate adaptive intelligent recovery, allowing the system to reach setpoints exactly when scheduled. For contractors, the onboard interview-based setup and installer logs streamline commissioning and troubleshooting, while the 900 MHz operating frequency provides robust communication with a full suite of RedLINK accessories without interference from standard Wi-Fi signals.
Key Benefits for HVAC Professionals- Reduced Wiring Labor: The 2-wire design is ideal for retrofitting staged equipment or IAQ accessories without pulling new thermostat wire.
- Integrated IAQ Control: Dedicated terminals for humidifiers, dehumidifiers, and ventilators eliminate the need for external relays or separate controls.
- Delta T Monitoring: Includes duct sensors to track air temperature differentials, providing proactive performance alerts to identify refrigeration or airflow issues.
- Scalable Architecture: Connects to RedLINK Internet Gateways, wireless indoor sensors, and portable comfort controls for comprehensive site management.
- Advanced Staging: Configurable staging options and auxiliary heat lockouts optimize energy efficiency for dual-fuel and multi-stage systems.
What is the maximum wireless range for the included sensors?
The RedLINK signals typically penetrate common building materials and offer a range of up to 200 feet, which can be extended using a RedLINK wireless adapter if required.
Is this kit compatible with variable speed blowers?
Yes, the system supports PWM or staged fan control via the EIM, making it compatible with most high-efficiency variable speed air handlers and furnaces.
Can I use this for a dual-fuel (Hybrid) application?
Absolutely. The YTHX9421R5101WW is specifically designed to manage heat pump and fossil fuel furnace transitions using the included outdoor sensor for precise lockout temp control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
