Resideo YTH6320R1001 Stat Kit

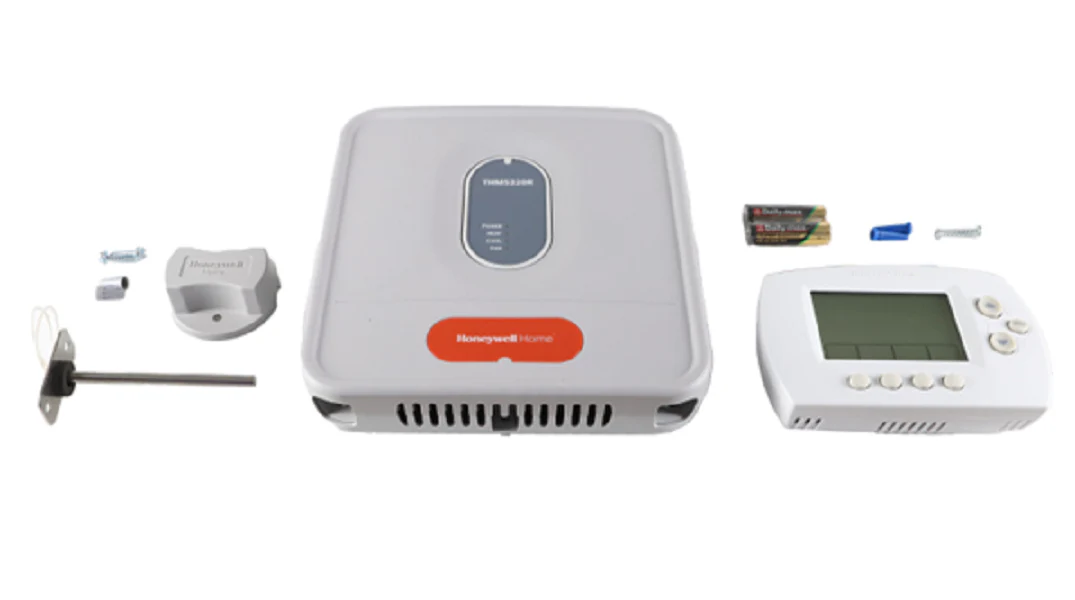

The Resideo YTH6320R1001 is a professional-grade Wireless FocusPRO 6000 thermostat kit designed for streamlining retrofits and equipment upgrades without the need for additional 24V wiring. Utilizing RedLINK wireless technology, this multi-stage system supports up to 3 Heat / 2 Cool heat pump and 2 Heat / 2 Cool conventional applications. The kit includes the TH6320R1004 programmable thermostat, a THM5320R1000 Equipment Interface Module (EIM), and a C7735A1000 return air sensor. This return air sensor is a critical fail-safe, maintaining temperatures at 62°F for heating and 82°F for cooling if the wireless connection to the thermostat is interrupted. For dual-fuel setups, it integrates seamlessly with RedLINK accessories, including outdoor sensors and the RedLINK Internet Gateway for remote monitoring. The 5-1-1 or 5-2 day programming schedules allow for precise comfort control while the Equipment Interface Module centralizes all HVAC wiring at the mechanical system, preventing interference with other household wireless devices.
Key Benefits
- RedLINK Wireless Communication: Ensures a secure, interference-free connection between the thermostat and the Equipment Interface Module.
- Simplified Installation: Eliminate the labor and damage associated with fishing wires through walls during thermostat relocation or system upgrades.
- Multi-Stage Support: Compatible with a wide range of gear, including forced air, gas, oil, electric, and heat pump systems.
- Dual Fuel Intelligence: Allows for optimized control of heat pump and furnace combinations when used with an outdoor sensor.
- Emergency Safeguard: Included return air sensor protects the structure by maintaining set minimum/maximum temperatures during signal loss.
Common Questions
Is a C-wire required at the thermostat?
No, the YTH6320R1001 thermostat is battery-powered, meaning you do not need to pull a common wire to the wall location. All hardwiring is handled at the Equipment Interface Module near the furnace or air handler.
Can I control this thermostat from my phone?
Yes, but it requires the RedLINK Internet Gateway (sold separately). Once connected, you can manage the system via the Total Connect Comfort app.
What is the maximum range for the wireless signal?
The RedLINK technology typically covers up to 200 feet, though this can be affected by building materials. The signal is specifically designed to penetrate walls and floors effectively in residential environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
