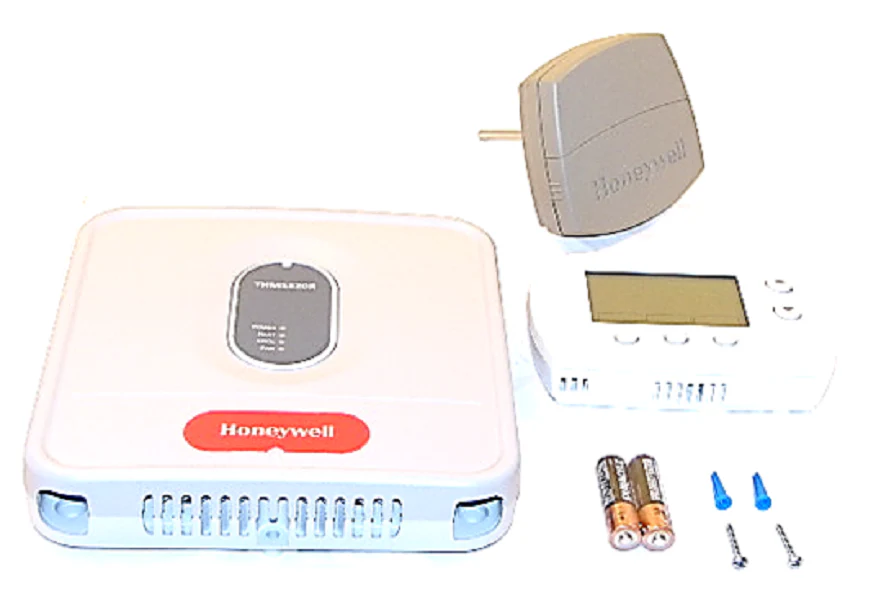

Resideo YTH5320R1000 Thermostat Kit
The Resideo YTH5320R1000 FocusPRO 5000 kit is the industry standard for contractors looking to relocate a thermostat or upgrade a multi-stage system without the labor of pulling new wire. This wireless thermostat kit utilizes proprietary RedLINK technology to establish a robust 900 MHz connection between the TH5320R1002 head unit and the THM5320R1000 Equipment Interface Module (EIM). Engineered for multi-stage HVAC systems, it supports up to 3-heat/2-cool heat pump configurations or 2-heat/2-cool conventional systems. The included C7735A1000 Return Air Sensor provides a critical fail-safe, maintaining setpoints of 62°F for heating and 82°F for cooling if communication with the wall unit is lost. This non-programmable digital thermostat features a large backlit display for high visibility in mechanical rooms or residential spaces. It is fully compatible with the RedLINK Internet Gateway, enabling remote monitoring and diagnostics through the Total Connect Comfort platform, providing a reliable solution for complex retrofits and professional-grade HVAC control.
Key Benefits
- Wireless Installation: Eliminates the need to fish wires through finished walls, significantly reducing labor hours on retrofits.
- Multi-Stage Compatibility: Versatile enough to handle gas, oil, electric, and heat pump systems (up to 3H/2C).
- Fail-Safe Protection: The Return Air Sensor ensures the system continues to operate at safe temperatures even if the wireless signal is interrupted.
- System Expandability: Connects seamlessly with RedLINK accessories, including wireless outdoor sensors and internet gateways for smartphone control.
- Dual Fuel Ready: Built-in logic for heat pump systems with auxiliary heat backups without requiring additional outdoor sensors.
Common Questions
Can I use this kit to replace a thermostat in a location where I have no wires?
Yes, the thermostat head is battery-powered and communicates wirelessly with the Equipment Interface Module (EIM) installed at the furnace or air handler, making it the ideal solution for wire-free relocation.
Does this unit support heat pump systems with emergency heat?
Absolutely. It supports up to 3-stage heat and 2-stage cool heat pump applications, including dedicated terminals for emergency heat control.
Is a C-wire required for the thermostat?
No, the wireless thermostat unit is typically powered by batteries, though the EIM at the equipment requires a standard 24V connection to operate the wireless bridge.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
