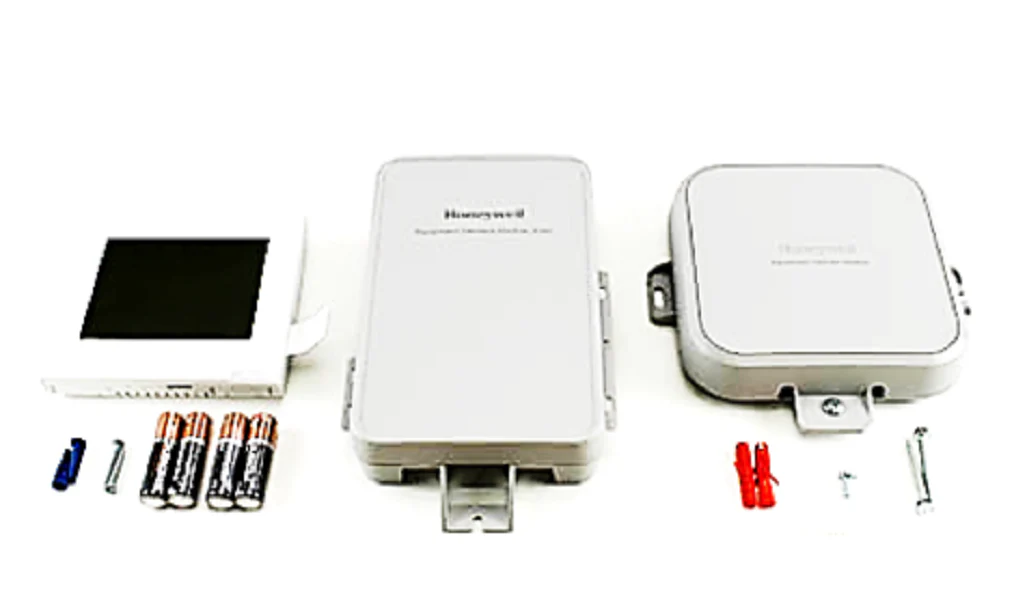

Resideo YERM5220RVPEIM Module Kit
The Resideo YERM5220RVPEIM Module Kit is a specialized solution for HVAC contractors facing complex retrofits or equipment relocations. This kit leverages RedLINK wireless technology to establish a robust communication link between the thermostat and the condensing unit, heat pump, or boiler without the need for fresh control wiring. By utilizing the Equipment Interface Module (EIM) and the Equipment Remote Module (ERM), technicians can bypass physical obstacles like concrete slabs or finished walls, saving significant billable hours and reducing site damage. The included VisionPRO touchscreen thermostat serves as the central hub, capable of managing up to 2 Heat/2 Cool heat pump or 2-stage conventional systems. Operable on a standard 24 Vac power supply, the ERM is suitable for outdoor use and features dedicated terminals for outdoor temperature sensors or indoor freeze protection. For diagnostic clarity, integrated LEDs provide immediate feedback on communication status and equipment calls during commissioning.
- Eliminate Wire Pulls: Replaces the need for new thermostat wiring between the indoor and outdoor units, ideal for heat pump upgrades.
- Universal Compatibility: Supports a wide range of equipment including multi-stage compressors, boilers, and dual-fuel applications.
- RedLINK Reliability: High-performance wireless signal ensures consistent communication even through common structural barriers.
- Weatherproof ERM: The remote module is designed for external mounting near the compressor, rated for extreme temperatures from -40°F to +155°F.
- Advanced Protection: S1/S1 sensor terminals allow for localized 10k ohm temperature monitoring to prevent freeze-ups.
Common Questions
Can I use this kit to convert a straight cool system to a heat pump?
Yes. This kit is specifically designed to add the necessary control stages for heat pump upgrades without pulling a new 18/8 wire bundle to the outdoor unit.
Where should the Equipment Remote Module be mounted?
The ERM should be mounted on an exterior wall near the condensing unit or boiler, at least three feet above the ground, with the wire exits facing downward to prevent moisture ingress.
Is a separate transformer required for the outdoor unit communication?
If 24 Vac power (R and C) is not available from the indoor unit at the ERM location, a 120/240V to 24V transformer must be installed to power the remote module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
