Resideo Y8150A1017 Ventilation System

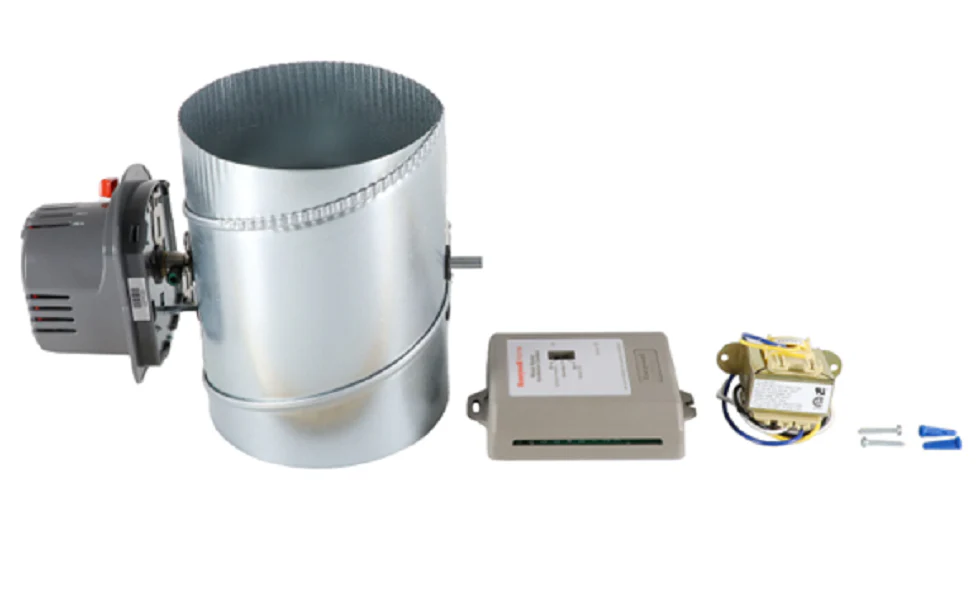

The Resideo Y8150A1017 Ventilation System is a professional-grade solution designed to manage fresh air intake in residential and light commercial HVAC systems. This comprehensive kit includes the W8150A1001 ventilation controller, an EARD6TZ TrueZONE damper, and an AT120B1028 24V transformer. Engineered to help contractors meet ASHRAE 62.2-2010 standards, the onboard microcontroller optimizes air delivery by syncing ventilation calls with equipment run times, reducing unnecessary blower operation. With an airflow capacity spanning 50 to 160 CFM, the unit provides precision control via intuitive input dials for square footage, bedroom count, and measured airflow. The included 6-inch power-open, spring-closed automatic damper ensures a reliable seal when the system is inactive. Featuring a convenient test mode for immediate feedback on air delivery requirements, this 24 Vac system integrates seamlessly with forced-air setups or as a component in balanced ventilation strategies using HRVs or ERVs.
Key Benefits- ASHRAE 62.2 Compliance: Simplifies meeting local building codes for indoor air quality and ventilation rates.
- Intelligent Control: Syncs fresh air ventilation with heating and cooling cycles to minimize energy consumption.
- Integrated Test Mode: Provides contractors with instant verification that dial settings satisfy selected ventilation standards.
- Universal Compatibility: Works with standard forced air systems and can be configured for multi-system residential layouts.
- All-in-One Kit: Eliminates the need to source separate 24V transformers or damper actuators for standard fresh air installs.
How do I confirm the system is meeting ASHRAE requirements?
Set the dials to the home's specific parameters and press the test button; a green flashing light indicates the Y8150A1017 settings currently meet the selected standard.
Can this system be used in unconditioned spaces?
Yes, the ventilation controller and damper are designed to operate in ambient temperatures from -20 °F to 160 °F, making them suitable for attics or crawlspaces.
What size ductwork is compatible with the included damper?
The provided EARD6TZ TrueZONE damper features a 6-inch diameter, though larger ducting can be used upstream to maximize airflow and reduce fan run time.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $273.30
-65%$273.30
$95.66Resideo Y8150A1017 Ventilation System
The Resideo Y8150A1017 Ventilation System is a professional-grade solution designed to manage fresh air intake in residential and light commercial HVAC systems. This comprehensive kit includes the W8150A1001 ventilation controller, an EARD6TZ TrueZONE damper, and an AT120B1028 24V transformer. Engineered to help contractors meet ASHRAE 62.2-2010 standards, the onboard microcontroller optimizes air delivery by syncing ventilation calls with equipment run times, reducing unnecessary blower operation. With an airflow capacity spanning 50 to 160 CFM, the unit provides precision control via intuitive input dials for square footage, bedroom count, and measured airflow. The included 6-inch power-open, spring-closed automatic damper ensures a reliable seal when the system is inactive. Featuring a convenient test mode for immediate feedback on air delivery requirements, this 24 Vac system integrates seamlessly with forced-air setups or as a component in balanced ventilation strategies using HRVs or ERVs.
Key Benefits- ASHRAE 62.2 Compliance: Simplifies meeting local building codes for indoor air quality and ventilation rates.
- Intelligent Control: Syncs fresh air ventilation with heating and cooling cycles to minimize energy consumption.
- Integrated Test Mode: Provides contractors with instant verification that dial settings satisfy selected ventilation standards.
- Universal Compatibility: Works with standard forced air systems and can be configured for multi-system residential layouts.
- All-in-One Kit: Eliminates the need to source separate 24V transformers or damper actuators for standard fresh air installs.
How do I confirm the system is meeting ASHRAE requirements?
Set the dials to the home's specific parameters and press the test button; a green flashing light indicates the Y8150A1017 settings currently meet the selected standard.
Can this system be used in unconditioned spaces?
Yes, the ventilation controller and damper are designed to operate in ambient temperatures from -20 °F to 160 °F, making them suitable for attics or crawlspaces.
What size ductwork is compatible with the included damper?
The provided EARD6TZ TrueZONE damper features a 6-inch diameter, though larger ducting can be used upstream to maximize airflow and reduce fan run time.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
