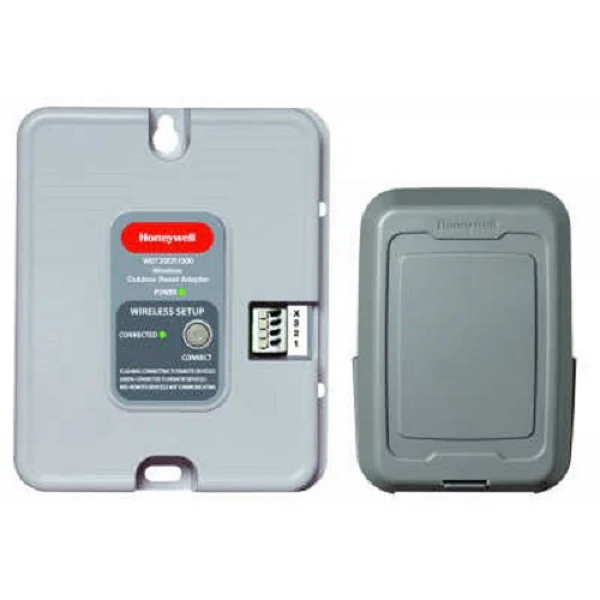

Resideo W8735Y1000 AquaReset Kit
The Resideo W8735Y1000 AquaReset Kit provides a streamlined wireless outdoor reset solution for hydronic systems utilizing Honeywell Home AquaStat controllers. By integrating the C7089R1013 wireless outdoor sensor and the W8735ER outdoor reset module, this kit enables RedLink technology to communicate ambient temperature data directly to the boiler control. This configuration allows for precise boiler reset ratio adjustments, automatically shifting the supply water temperature based on outdoor conditions to enhance fuel efficiency and reduce cycling. Engineered for versatility, the module supports wall mounting in any orientation and operates within a broad temperature range of -30°F to 150°F. This 24 Vac kit is designed for seamless integration with L7224 and L7248 electronic controllers, ensuring a high-efficiency hydronic heating setup without the labor-intensive process of running wires through external envelopes.
Key Benefits for the Contractor- RedLink Wireless Connectivity: Eliminates the need for drilling through exterior walls or running low-voltage wiring for the outdoor sensor.
- Optimized Energy Savings: Automatically calculates the most efficient water temperature, reducing fuel consumption in residential boiler applications.
- Rugged Environmental Tolerance: The outdoor sensor handles 0-95% non-condensing humidity and extreme temperatures for reliable operation in any climate.
- Quick Installation: The W8735ER module clips onto the application or mounts nearby, offering flexible Honeywell AquaReset installation options.
- System Precision: Provides accurate hydronic temperature compensation to improve occupant comfort and equipment longevity.
Which AquaStats are compatible with the AquaReset Kit?
This kit is specifically designed for Honeywell L7224 and L7248 electronic AquaStat controllers. It communicates via the RedLink protocol to override the high-limit setpoint based on the programmed reset curve.
What is the maximum range for the wireless sensor?
The C7089R1013 outdoor sensor typically maintains a strong signal through most residential standard construction; however, clear line-of-sight or minimal obstructions will ensure the most stable RedLink communication.
Does this module require a separate power supply?
No, the W8735ER module draws its 24 Vac power directly from the EnviraCOM communication bus terminals on the compatible AquaStat controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
