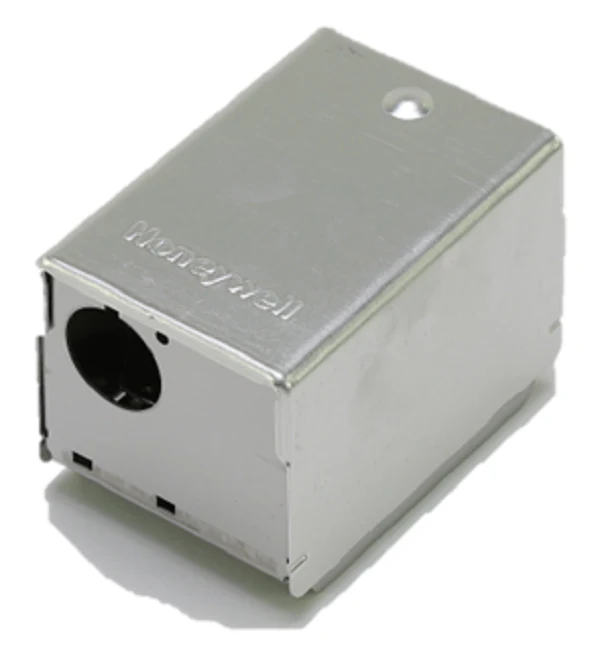

Resideo VU844A1060 Actuator
The Resideo VU844A1060 is a heavy-duty fan coil actuator engineered for precise control in hydronic systems. Operating on 24Vac, this two-position actuator utilizes a reliable SPST control signal to manage flow through compatible valve bodies. Built for longevity in demanding environments, it features a nickel-plated motor, a stainless steel case, and a robust aluminum cover. The mechanical spring return mechanism provides a rapid 6-second return timing, ensuring a fail-safe position during power loss, while the drive-open timing is rated at 15 seconds. This 1/8-inch 45-degree stroke unit is specifically designed for seamless integration with VU52 series 2-way normally open valve bodies or VU54 series 3-way valves. The 6-inch electrical leads simplify terminal connections in tight mechanical closets. This actuator is a field-proven solution for technicians requiring repeatable performance in high-pressure hydronic zone control applications where synthetic rubber seals and standard motor life are critical considerations.
Technical Specifications and Benefits:
- Compatibility: Optimized for VU52 and VU54 valve bodies for standard fan coil applications.
- Mechanical Integrity: Nickel-plated motor and stainless steel construction resist corrosion in high-humidity environments.
- Timing Precision: 15-second power-on stroke and 6-second spring return for efficient cycle management.
- Electrical Set-up: Standard 24Vac class 2 power requirement with 6-inch lead wires for rapid field wiring.
- Flow Control: Manages 2-way normally open or 3-way diverted flow patterns with a 45-degree stroke.
Common Questions for HVAC Contractors:
Is the VU844A1060 compatible with VU53 series bodies?
This specific model is engineered for use with VU52 normally open 2-way and VU54 3-way valve bodies; always verify the stroke and return configuration before replacing a VU844 series head on older VU53 bodies.
Can this actuator be mounted in any orientation?
For optimal motor life and to prevent moisture accumulation, it is recommended to mount the actuator within 90 degrees of vertical; avoid mounting the unit upside down below the valve body.
What is the power consumption of the VU844A1060?
The unit typically draws approximately 7.7 VA during the opening cycle, which must be factored into the total transformer load for the zone controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
