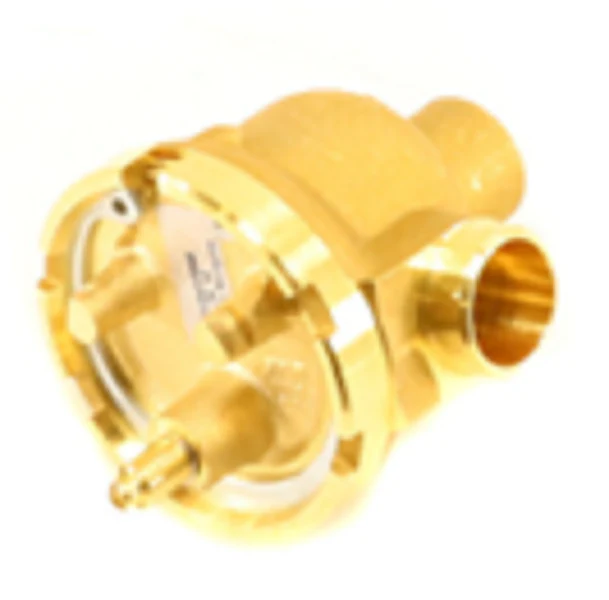

Resideo VU54S2008 Body
For professionals managing commercial hydronic systems, the Resideo VU54S2008 is a reliable, high-pressure three-way diverting valve designed for precision flow control. This 1/2" sweat connection body is engineered for use in demanding environments, including fan coil units, terminal reheat coils, and convectors. With a 4.0 Cv capacity, this short body diverting valve provides a quick-opening flow characteristic that ensures rapid response to 2-position control signals. Built with a forged brass body and a patented EPDM ball plug, it offers a soft close-off and a long service life in both hot and chilled water applications. The triple stem O-ring seal provides three layers of defense against leakage, making it a staple for technicians prioritizing system uptime. This valve body is designed for seamless integration with VU444 or VU844 actuators, allowing for easy installation under the covers of most baseboard convectors.
Key Benefits for the Contractor- Durable Construction: Features a forged brass body and a 316 stainless steel drive shaft for corrosion resistance in condensing environments.
- High Pressure Rating: Rated for a 300 psi maximum operating pressure, suitable for high-rise commercial hydronic loops.
- Serviceability: The quick-release actuator interface allows for motor replacement or valve servicing without draining the system.
- Glycol Compatibility: Optimized for systems using up to 60% glycol concentrations in chilled water setups.
- Compact Profile: The short body sweat design fits into tight mechanical enclosures where space is at a premium.
Can this valve be used for mixing applications?
While the VU54S2008 is primarily categorized as a diverting fan coil valve (flow enters the bottom AB port and is directed to either the A or B port), it can typically be piped for mixing in light commercial hydronic applications, provided the differential pressure does not exceed 20 psi.
Does this valve body include the actuator?
No, this is a valve body only. To complete the assembly, it must be paired with a compatible VU444 or VU844 series actuator.
What is the maximum fluid temperature for this body?
This forged brass zone valve is rated for fluid temperatures ranging from 34°F to 200°F (1°C to 93°C), making it ideal for standard hot water and chilled water systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
