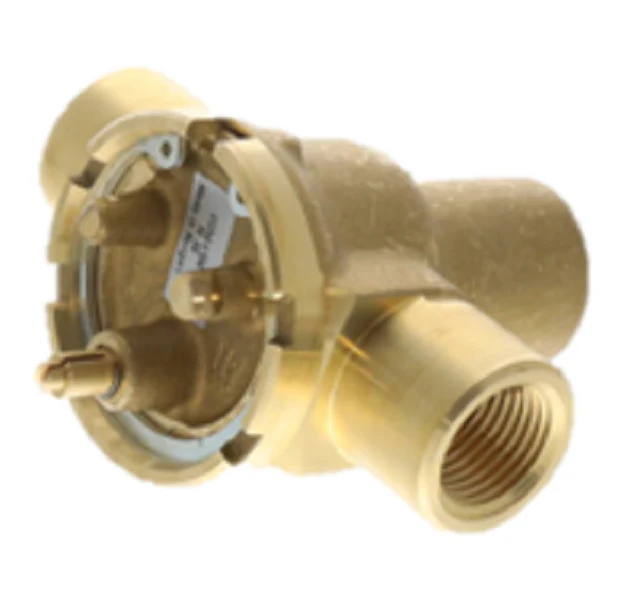

Resideo VU54N1007 Valve
The Resideo VU54N1007 Valve is a high-performance 3-way fan coil valve designed specifically for the precise regulation of hot or chilled water in commercial and industrial HVAC systems. Engineered for hydronic temperature control, this 1/2-inch NPT mixing valve features a robust forged brass body and a high-capacity 4.0 Cv flow coefficient, making it a reliable choice for terminal reheat coils and baseboard convectors. The internal engineering utilizes a Buna-N rubber plug and EPDM packing to ensure an effective seal, while the quick-opening flow curve provides rapid response to thermostat calls. With an operating pressure rating of 300 PSI and a 20 PSI maximum close-off, this unit is built for demanding high-pressure zones. It integrates seamlessly with VU444 and VU844 actuators, allowing for efficient diverting or mixing applications in systems using up to 60% glycol solutions. Contractors value the compact construction, which fits easily under equipment covers, and the triple O-ring seal that provides advanced protection against leaks and shaft corrosion.
- High-Flow Efficiency: The 4.0 Cv rating supports significant flow rates required for large-scale fan coil units and terminal equipment.
- Superior Seal Integrity: Features a patented ball seal and triple stem O-rings for a soft close-off and long-term leak prevention.
- Versatile Media Compatibility: Rated for both chilled and hot water applications, including those with high concentrations of glycol.
- Durable Construction: Built with a brass body, stem, and seat to resist corrosion and handle system pressures up to 300 PSI.
- Contractor-Friendly Install: Standard 1/2-inch FNPT connections allow for direct threading into iron or steel piping manifolds.
Is the Resideo VU54N1007 suitable for potable water systems?
No, this valve is designed strictly for closed-loop hydronic heating and cooling systems. It is not rated for open-loop or potable water applications.
What actuators are compatible with the VU54N1007 valve body?
This 3-way valve body is specifically designed to work with VU444 and VU844 actuators. Using other actuator series can result in improper seating or water hammer.
Can this valve be used for both mixing and diverting?
Yes, the VU54N1007 is engineered for versatility and can be piped for either mixing or diverting control depending on the system layout and port orientation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $72.23
-65%$72.23
$25.28Resideo VU54N1007 Valve
The Resideo VU54N1007 Valve is a high-performance 3-way fan coil valve designed specifically for the precise regulation of hot or chilled water in commercial and industrial HVAC systems. Engineered for hydronic temperature control, this 1/2-inch NPT mixing valve features a robust forged brass body and a high-capacity 4.0 Cv flow coefficient, making it a reliable choice for terminal reheat coils and baseboard convectors. The internal engineering utilizes a Buna-N rubber plug and EPDM packing to ensure an effective seal, while the quick-opening flow curve provides rapid response to thermostat calls. With an operating pressure rating of 300 PSI and a 20 PSI maximum close-off, this unit is built for demanding high-pressure zones. It integrates seamlessly with VU444 and VU844 actuators, allowing for efficient diverting or mixing applications in systems using up to 60% glycol solutions. Contractors value the compact construction, which fits easily under equipment covers, and the triple O-ring seal that provides advanced protection against leaks and shaft corrosion.
- High-Flow Efficiency: The 4.0 Cv rating supports significant flow rates required for large-scale fan coil units and terminal equipment.
- Superior Seal Integrity: Features a patented ball seal and triple stem O-rings for a soft close-off and long-term leak prevention.
- Versatile Media Compatibility: Rated for both chilled and hot water applications, including those with high concentrations of glycol.
- Durable Construction: Built with a brass body, stem, and seat to resist corrosion and handle system pressures up to 300 PSI.
- Contractor-Friendly Install: Standard 1/2-inch FNPT connections allow for direct threading into iron or steel piping manifolds.
Is the Resideo VU54N1007 suitable for potable water systems?
No, this valve is designed strictly for closed-loop hydronic heating and cooling systems. It is not rated for open-loop or potable water applications.
What actuators are compatible with the VU54N1007 valve body?
This 3-way valve body is specifically designed to work with VU444 and VU844 actuators. Using other actuator series can result in improper seating or water hammer.
Can this valve be used for both mixing and diverting?
Yes, the VU54N1007 is engineered for versatility and can be piped for either mixing or diverting control depending on the system layout and port orientation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
