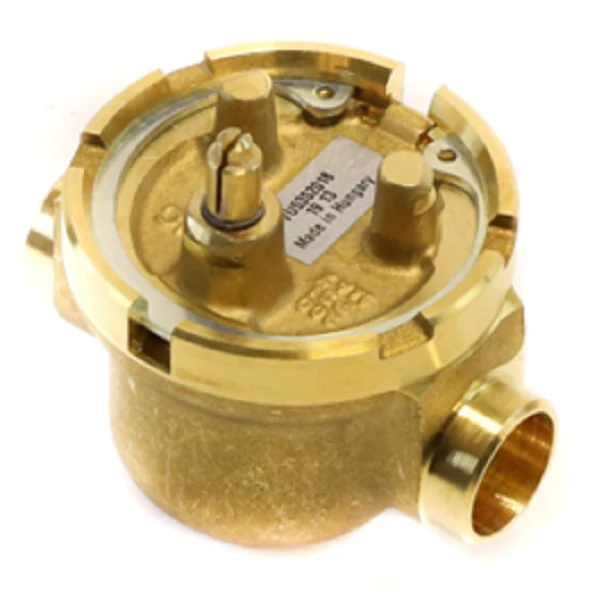

Resideo VU53S2018 Valve
The Resideo VU53S2018 is a professional-grade two-way fan coil valve designed for precise hydronic flow control in commercial HVACR applications. This normally closed (N/C) valve body is engineered for compatibility with VU443 and VU843 actuators, facilitating reliable on-off control of hot or chilled water. Featuring a robust brass body and high-performance Buna-N rubber internal components, it manages systems with up to 60% glycol concentration. The 1/2 inch sweat connection and 1.0 Cv rating make it an ideal fit for terminal reheat coils, convectors, and 2-pipe fan coil units with high static pressure requirements. With a 300 psi maximum safe operating pressure and a 50 psi close-off rating, this straight-through valve utilizes a quick-opening flow characteristic for responsive temperature regulation. The triple EPDM O-ring seal ensures a leak-resistant stem interface, while the compact construction allows for installation within tight baseboard or enclosure spaces without specialized tools.
Key Benefits- High Close-Off Performance: Engineered for 50 psi maximum close-off to prevent bypass in high-pressure zoning systems.
- Engineered Durability: Forged brass body combined with a brass seat and brass stem provides superior resistance to corrosion in non-oxygenated systems.
- Leak Prevention: Features a high-integrity triple EPDM rubber packing and Buna-N ball/disc for a soft, bubble-tight seal.
- Compact Footprint: Designed specifically to fit under the narrow covers of baseboard convectors and fan coil cabinets.
- Application Versatility: Handles fluid temperatures ranging from 34°F to 200°F, suitable for both chilled water and heating circuits.
Which actuators are compatible with the VU53S2018?
This valve body is designed to pair exclusively with VU443 (line voltage) and VU843 (low voltage) fan coil valve actuators. It is not intended for use with 3-way actuators.
Can this valve be used in domestic water systems?
No, this is a hydronic zone valve specifically for closed-loop HVAC systems. It is not rated for potable water or systems containing dissolved oxygen.
How do I install the actuator on the valve body?
These valves utilize a one-button quick release mechanism. The actuator snaps onto the 3-point metal latch on the valve body without needing to drain the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
