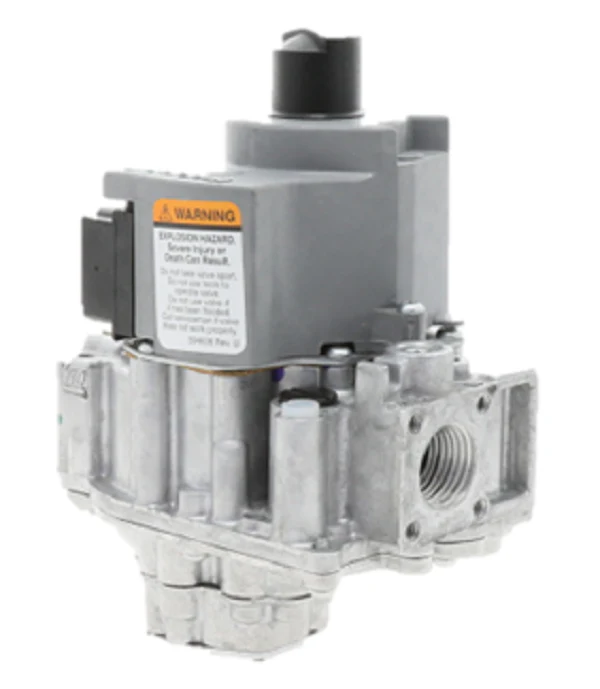

Resideo VR8305P2224 Valve
The Resideo VR8305P2224 is a professional-grade 24V dual direct ignition gas valve designed for single-stage heating applications. Engineered for field reliability, this combination gas control integrates a manual valve, two automatic operators, and a pressure regulator within a compact, straight-through body. This model for a 1/2" x 1/2" NPT connection is factory-configured for LP gas (Liquid Propane) with a step opening characteristic, providing a 4.0" w.c. initial step and a 10.0" w.c. full rate pressure setting. With a robust capacity ranging from 30,000 to 415,000 BTU/h, it is fully compatible with hot surface ignition and direct spark ignition (DSI) systems, specifically designed to interface with S89 and S87 series diagnostic modules.
The VR8305P2224 ensures precise fuel management and safety through its dual solenoid and diaphragm-operated valves, meeting strict codes for dual safety shutoff. The internal servo regulator maintains a consistent discharge pressure despite fluctuations in the supply line, ensuring stable burner performance. For versatile installation, the unit includes a 1/8" NPT pressure tapping with a plug and comes with 3/4" x 1/2" reducer bushings and a 3/4" straight flange to accommodate various manifold configurations in the field.
Key Benefits
- Enhanced Safety: Dual automatic operators provide redundant safety shutoff to meet industry regulations for 24vac gas fired appliances.
- Precise Ignition: The step-opening gas valve design ensures a controlled light-off, reducing ignition noise and stresses on the heat exchanger.
- High Capacity: Supports a wide operational range up to 415,000 BTU, making it suitable for high-output residential and commercial furnaces.
- Field Optimized: 1/4" male quick-connect terminals and top-accessible adjustments streamline HVAC gas valve replacement and troubleshooting.
Common Questions
- Can this valve be converted to Natural Gas? While some VR8305 models allow for conversion, specialized step-opening models like the VR8305P2224 are typically calibrated for specific LP configurations. Always verify against your specific appliance manufacturer’s requirements.
- What ignition systems is this compatible with? It is designed for direct burner ignition, including hot surface and direct spark systems; it is not for use with standing pilot applications.
- What is the temperature rating? The valve is rated for ambient temperatures ranging from -40°F to +175°F, ensuring performance in unconditioned mechanical spaces.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $270.36
-65%$270.36
$94.63Resideo VR8305P2224 Valve
The Resideo VR8305P2224 is a professional-grade 24V dual direct ignition gas valve designed for single-stage heating applications. Engineered for field reliability, this combination gas control integrates a manual valve, two automatic operators, and a pressure regulator within a compact, straight-through body. This model for a 1/2" x 1/2" NPT connection is factory-configured for LP gas (Liquid Propane) with a step opening characteristic, providing a 4.0" w.c. initial step and a 10.0" w.c. full rate pressure setting. With a robust capacity ranging from 30,000 to 415,000 BTU/h, it is fully compatible with hot surface ignition and direct spark ignition (DSI) systems, specifically designed to interface with S89 and S87 series diagnostic modules.
The VR8305P2224 ensures precise fuel management and safety through its dual solenoid and diaphragm-operated valves, meeting strict codes for dual safety shutoff. The internal servo regulator maintains a consistent discharge pressure despite fluctuations in the supply line, ensuring stable burner performance. For versatile installation, the unit includes a 1/8" NPT pressure tapping with a plug and comes with 3/4" x 1/2" reducer bushings and a 3/4" straight flange to accommodate various manifold configurations in the field.
Key Benefits
- Enhanced Safety: Dual automatic operators provide redundant safety shutoff to meet industry regulations for 24vac gas fired appliances.
- Precise Ignition: The step-opening gas valve design ensures a controlled light-off, reducing ignition noise and stresses on the heat exchanger.
- High Capacity: Supports a wide operational range up to 415,000 BTU, making it suitable for high-output residential and commercial furnaces.
- Field Optimized: 1/4" male quick-connect terminals and top-accessible adjustments streamline HVAC gas valve replacement and troubleshooting.
Common Questions
- Can this valve be converted to Natural Gas? While some VR8305 models allow for conversion, specialized step-opening models like the VR8305P2224 are typically calibrated for specific LP configurations. Always verify against your specific appliance manufacturer’s requirements.
- What ignition systems is this compatible with? It is designed for direct burner ignition, including hot surface and direct spark systems; it is not for use with standing pilot applications.
- What is the temperature rating? The valve is rated for ambient temperatures ranging from -40°F to +175°F, ensuring performance in unconditioned mechanical spaces.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
