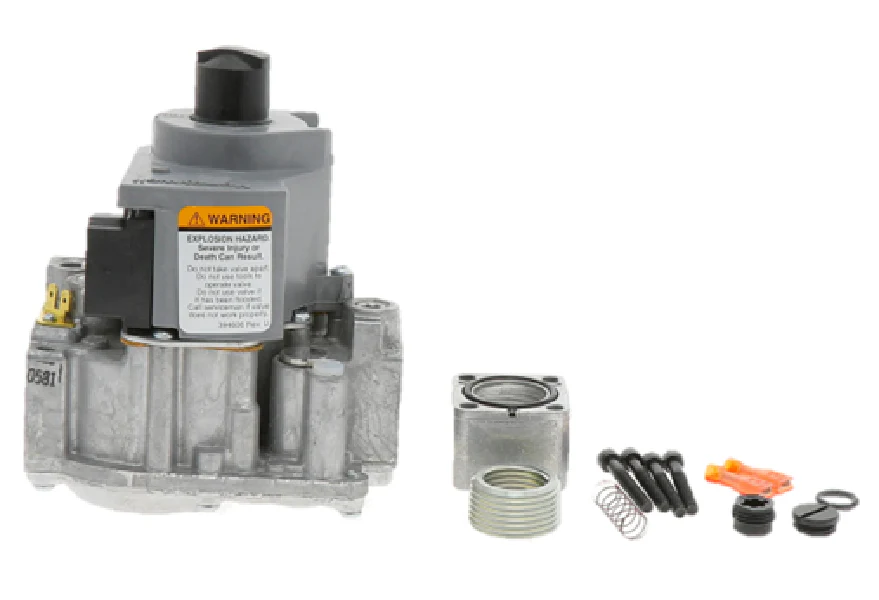

Resideo VR8305M3506 Valve
The Resideo VR8305M3506 is a professional-grade direct ignition dual automatic combination valve engineered for single-stage gas-fired appliances. Designed for compatibility with high-performance direct spark ignition (DSI) and hot surface ignition systems, this 24Vac gas control valve features a straight-through body pattern with a 1/2" NPT inlet and 3/4" NPT outlet. Field technicians and contractors rely on this combination gas control for its robust capacity range of 30,000 to 370,000 BTU/h (natural gas) and its 3.5" w.c. standard pressure regulator setting. This unit serves as the direct replacement for 841942, ensuring seamless mechanical and electrical integration during retrofits. Each valve includes a natural gas to LP conversion kit and necessary reducer bushings to accommodate various piping configurations. Optimized for reliability in demanding HVACR environments, the VR8305M3506 provides dual safety shutoff capabilities and 1/4" male quick-connect terminals for rapid, secure wiring. This standard opening valve is the industry benchmark for precise fuel regulation and consistent ignition performance in commercial and residential heating platforms.
Key Benefits for HVACR Contractors- Universal Compatibility: Specifically designed for direct ignition systems, including DSI and hot surface applications, ensuring broad equipment utility.
- Precise Regulation: Reliable 3.5 inch wc regulator maintains consistent gas flow, critical for burner efficiency and stable combustion.
- Flexible Installation: Features a straight through body pattern and includes 3/4" x 1/2" reducer bushings and a 3/4" straight flange for versatile piping.
- Field Convertible: Ships with an LP conversion kit, allowing for immediate on-site adaptation to liquefied petroleum gas if required.
- Code Compliant Safety: Integrated dual automatic operators meet strict safety standards for automatic shutoff in the event of power or pilot loss.
Is the VR8305M3506 compatible with standing pilot systems?
No, this model is exclusively for direct ignition (DSI) and hot surface ignition systems. It does not feature a pilot gas outlet.
Can this valve be mounted in a vertical orientation?
Yes, the valve is designed for mounting from 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertical installs.
Wait, I'm replacing an 841942 part; is this the correct sub?
Correct. The VR8305M3506 is the verified replacement for 841942 gas valves, maintaining the necessary capacity and electrical ratings for a drop-in fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
