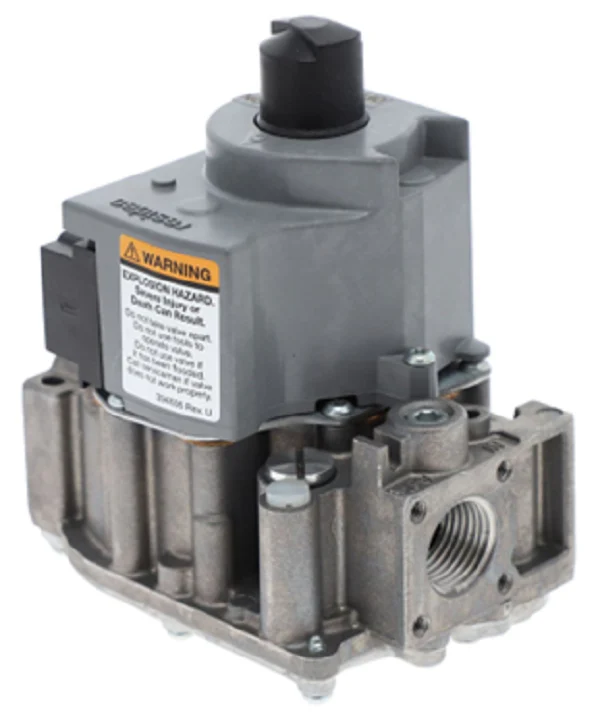

Resideo VR8305M2102/B Gas Valve
The Resideo VR8305M2102/B is a high-capacity, 3/4-inch redundant combination gas valve engineered for intermittent pilot ignition systems in residential and light commercial HVAC applications. This dual-seat valve manages natural gas flow with precision, responding to 24V thermostat demands to provide stable burner operation for gas furnaces and boilers. Designed with a dual safety shutoff mechanism, the unit provides internal redundancy to prevent unintended gas leakage during fault conditions or system shutdowns. With a capacity rated up to 300,000 BTU/hr, it serves as a robust service replacement for Honeywell VR8305M series valves. This standard-opening gas valve features 3/4" x 3/4" inlet/outlet ports and includes a pressure regulator factory-set for 3.5 in. wc. Field technicians find this model reliable for high-efficiency equipment where consistent gas pressure regulation and safety compliance are non-negotiable requirements for service calls.
Key Benefits:
- High-Capacity flow: 3/4-inch NPT connections support medium to large residential and light commercial heating loads.
- Dual-Seat Safety: Redundant internal valves ensure positive shutoff of natural gas when the furnace is not in a heating cycle.
- Intermittent Pilot Compatibility: Specifically optimized for use with electronic ignition modules in 24 Vac systems.
- Standard Opening: Provides a steady gas pressure curve, preventing ignition lift-off and ensuring smooth burner light-off.
- Versatile Application: Ideal for upgrading older HVAC heating systems or servicing modern high-output boilers and furnaces.
Common Questions:
What ignition systems work with the Resideo VR8305M2102/B?
This valve is designed exclusively for intermittent pilot ignition (IP) systems and is not compatible with standing pilot or direct spark ignition setups without appropriate conversion or control modules.
Can this gas valve be converted for use with Liquid Propane (LP)?
Yes, while factory-set for natural gas, this dual safety shutoff gas valve can be converted to LP using the manufacturer-specified regulator conversion kit.
What are the electrical requirements for this 3/4-inch gas valve?
The solenoid coils operate on a standard 24V gas valve circuit (50/60 Hz) and require approximately 0.7 Amps of current to maintain the main valve seat position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
