Resideo VR8304M3509 Gas Valve

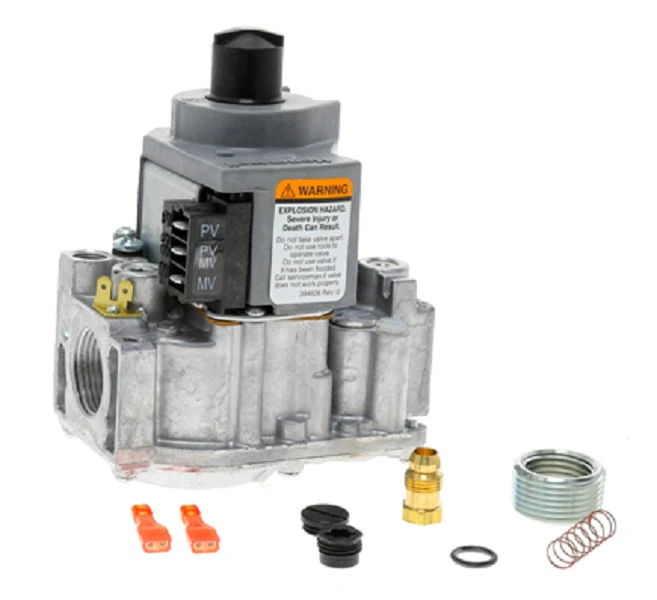

The Resideo VR8304M3509 Gas Valve is a heavy-duty single stage intermittent pilot dual automatic valve engineered for high-capacity atmospheric boilers, commercial water heaters, and furnaces. Featuring a 1/2" x 3/4" inlet/outlet configuration, this 24VAC gas valve delivers a capacity of up to 270,000 BTU, making it a versatile component for demanding mechanical rooms. Designed for natural gas applications, the kit includes a natural to LP conversion kit and a 3/4" x 1/2" reducer bushing to simplify field installation. The unit utilizes 1/4" male quick connects for wiring and is the direct OEM replacement for 5H0730980002 and 5651-023. This intermittent pilot ignition valve ensures reliable main burner sequencing and pressure regulation, maintaining stable manifold pressure under varying load conditions. For technicians upgrading older systems, this Honeywell Home VR8304M3509 provides a drop-in solution for precise fuel control and safety shut-off performance.
- High-Capacity Throughput: Rated for 270,000 BTU gas valve applications, suitable for large-scale residential and light commercial equipment.
- Universal Compatibility: Direct replacement for discontinued models 5H0730980002 and 5651-023.
- Field Flexibility: Includes an LP conversion kit and bushing to adapt to various manifold sizes and fuel types on-site.
- Reliable Sequencing: Dual automatic valves provide redundant safety shut-off integrated with intermittent pilot control systems.
Common Installation Questions
Can the VR8304M3509 be used with Liquid Propane?
Yes, while factory-set for natural gas, this valve includes a Resideo LP conversion kit to modify the regulator for propane applications.
What are the electrical requirements for this valve?
This is a standard 24V gas valve requiring a 0.7A draw, typically powered by a Class 2 transformer through the ignition module.
Does this valve support standing pilot systems?
No, this model is specifically designed for intermittent pilot ignition systems and does not have a manual pilot adjustment for standing pilot setups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
