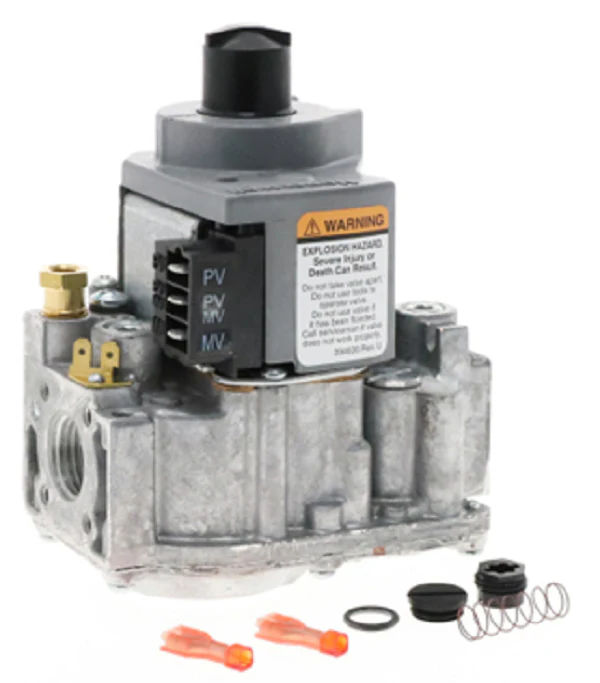

Resideo VR8304M2501 Valve
The Resideo VR8304M2501 is a single-stage gas valve engineered for precision in high-capacity heating applications. This intermittent pilot dual automatic valve features a standard opening characteristic with a rated capacity of 240,000 BTU/hr (at 1 in. wc p.d.), making it a reliable choice for commercial and residential appliances requiring robust fuel control. The VR8304M2501 operates on a 24VAC gas valve circuit and maintains a factory-set 3.5 in. wc pressure regulator setting to ensure consistent manifold pressure under varying supply conditions. For technicians handling fuel transitions, this unit is natively configured for natural gas but includes a natural to LP conversion kit (393691) for field adaptability. Electrical termination is streamlined via 1/4" male quick connects, while the 1/2" NPT inlet and outlet provide a straight-through body pattern for simplified piping. This valve is designed to meet strict codes for dual safety shutoff, utilizing two automatic operators to secure the gas line when the call for heat ends or power is lost.
Key Benefits for the Job Site- Dual Automatic Operators: Provides redundant safety shutoff by combining a solenoid-operated first valve with a diaphragm-operated second valve.
- Field Flexibility: The included LP conversion kit allow technicians to adapt the valve for liquid propane on-site without ordering separate components.
- Wide Compatibility: Specifically designed to interface with Resideo S8600, S8610, and S90 series ignition modules.
- Accessible Testing: Includes a 1/8 in. NPT pressure tap with plug and top-mounted adjustments for quick manifold pressure verification.
- Versatile Mounting: Rated for operation at 0 to 90 degrees in any direction from the upright position, including vertical installations.
Is the VR8304M2501 compatible with my existing S8610U module?
Yes, this valve is a standard component for systems utilizing S86F, H; S860D; S8600F, H; and S8610 modules, provided the voltage requirements match the 24VAC output.
Can I use this valve for a high-output 300,000 BTU boiler?
While the standard rating is 240,000 BTU/hr at 1 in. p.d., the VR8304 series can support up to 415,000 BTU/hr depending on the specific pressure drop across the valve. Always verify the appliance nameplate requirements.
Does this unit replace the older VR8304M2105?
Yes, the VR8304M2501 serves as a direct functioning replacement for several legacy Resideo and Honeywell gas controls, including the VR8304M2105 and VR8440A2159.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $282.07
-65%$282.07
$98.72Resideo VR8304M2501 Valve
The Resideo VR8304M2501 is a single-stage gas valve engineered for precision in high-capacity heating applications. This intermittent pilot dual automatic valve features a standard opening characteristic with a rated capacity of 240,000 BTU/hr (at 1 in. wc p.d.), making it a reliable choice for commercial and residential appliances requiring robust fuel control. The VR8304M2501 operates on a 24VAC gas valve circuit and maintains a factory-set 3.5 in. wc pressure regulator setting to ensure consistent manifold pressure under varying supply conditions. For technicians handling fuel transitions, this unit is natively configured for natural gas but includes a natural to LP conversion kit (393691) for field adaptability. Electrical termination is streamlined via 1/4" male quick connects, while the 1/2" NPT inlet and outlet provide a straight-through body pattern for simplified piping. This valve is designed to meet strict codes for dual safety shutoff, utilizing two automatic operators to secure the gas line when the call for heat ends or power is lost.
Key Benefits for the Job Site- Dual Automatic Operators: Provides redundant safety shutoff by combining a solenoid-operated first valve with a diaphragm-operated second valve.
- Field Flexibility: The included LP conversion kit allow technicians to adapt the valve for liquid propane on-site without ordering separate components.
- Wide Compatibility: Specifically designed to interface with Resideo S8600, S8610, and S90 series ignition modules.
- Accessible Testing: Includes a 1/8 in. NPT pressure tap with plug and top-mounted adjustments for quick manifold pressure verification.
- Versatile Mounting: Rated for operation at 0 to 90 degrees in any direction from the upright position, including vertical installations.
Is the VR8304M2501 compatible with my existing S8610U module?
Yes, this valve is a standard component for systems utilizing S86F, H; S860D; S8600F, H; and S8610 modules, provided the voltage requirements match the 24VAC output.
Can I use this valve for a high-output 300,000 BTU boiler?
While the standard rating is 240,000 BTU/hr at 1 in. p.d., the VR8304 series can support up to 415,000 BTU/hr depending on the specific pressure drop across the valve. Always verify the appliance nameplate requirements.
Does this unit replace the older VR8304M2105?
Yes, the VR8304M2501 serves as a direct functioning replacement for several legacy Resideo and Honeywell gas controls, including the VR8304M2105 and VR8440A2159.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
