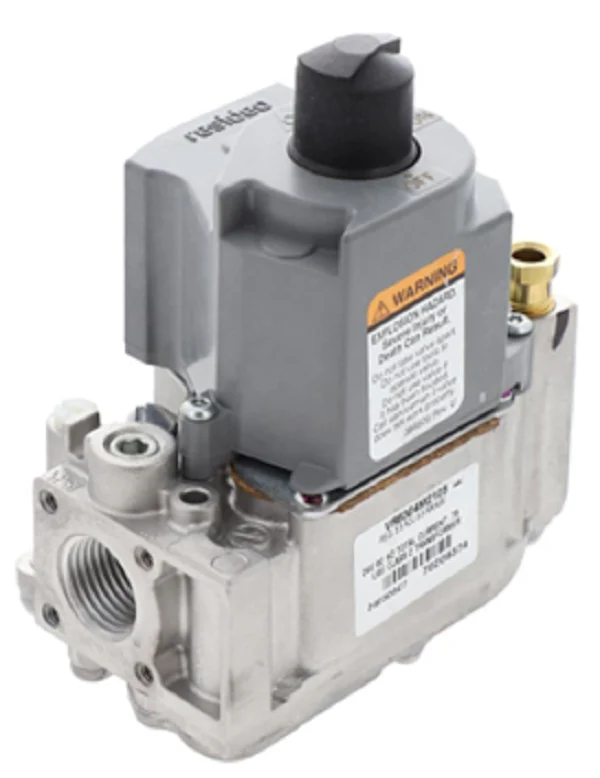

Resideo VR8304M2105/B Gas Valve
The Resideo VR8304M2105/B Gas Valve is a rugged, 24V dual ignition combination gas control engineered specifically for intermittent pilot ignition systems. This 1/2-inch x 1/2-inch NPT valve is designed for high-capacity applications in residential and light commercial furnaces or boilers. It features a standard opening characteristic with a 3.5-inch WC pressure regulator setting for natural gas, ensuring precise manifold pressure. The VR8304M2105 includes a 1/4-inch male quick-connect terminal suite for reliable electrical mating and a literal "swing-out" capability for tight mechanical footprints. This dual stage gas valve replaces numerous legacy Honeywell and Resideo models, making it a versatile HVAC gas valve replacement for field service technicians. Its internal safety shutoff mechanism and pilot flow adjustment provide stable combustion across various BTU inputs, vital for maintaining high combustion efficiency in modern atmospheric or power-vented appliances.
Key Benefits:- Intermittent Pilot Ignition Compatibility: Specifically designed for electronic ignition sequences, eliminating the need for a standing pilot.
- 1/2" NPT Inlet/Outlet: Standard sizing for seamless integration into existing residential and light commercial gas manifolds.
- Compact Footprint: Engineered for easy installation in modern high-efficiency furnace cabinets and boiler vestibules.
- Integrated Safety Shutoff: Features a robust redundant solenoid design to ensure positive gas flow termination.
- High BTU Capacity: Optimized for consistent gas delivery across a broad range of heating equipment firing rates.
What is the voltage requirement for the VR8304M2105/B?
This control operates on a standard 24 VAC, 60 Hz transformer commonly found in residential HVAC control circuits.
Yes, while factory-set for natural gas, it can be field-converted to LP using the manufacturer's specified conversion kit (sold separately). How do I test the manifold pressure on this unit?
The valve is equipped with pressure taps on both the inlet and outlet sides for easy manometer connection during commissioning or troubleshooting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
