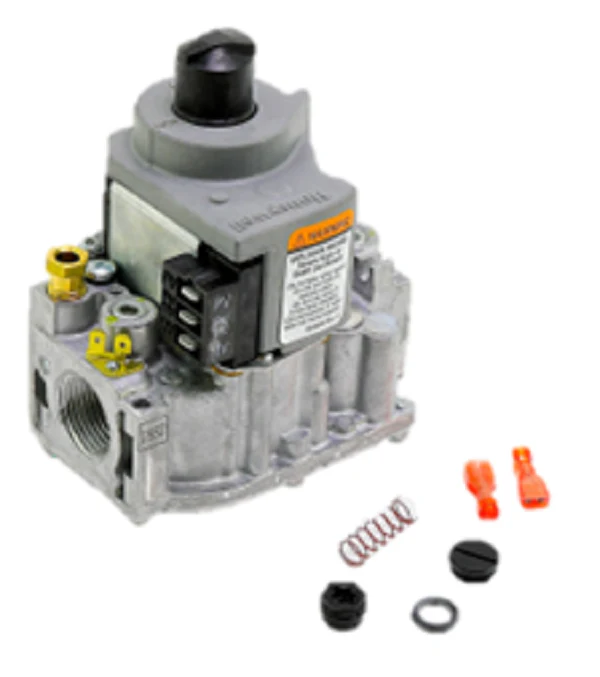

Resideo VR8304H4503 Valve
The Resideo VR8304H4503 is a single stage gas valve engineered for intermittent pilot systems in high-capacity residential and commercial heating equipment. Operating at 24Vac, this slow opening gas valve provides controlled fuel delivery, preventing combustion surges and ensuring a smooth lighting sequence. With a robust 3/4 inch NPT inlet and outlet, it supports a high-flow capacity of 300,000 BTU, making it a standard choice for boilers and large furnaces requiring reliable pressure regulation. This dual automatic valve architecture integrates a solenoid-operated first valve and a diaphragm-operated second valve, meeting strict safety codes for dual shutoff. The internal adjustable servo regulator maintains stable outlet pressure despite fluctuations in the supply line. Each unit features 1/4 inch male quick connects for streamlined wiring and includes a natural to LP conversion kit (393691) for field flexibility. Designed for technicians, all adjustments and pilot taps are accessible from the top for efficient troubleshooting and installation.
Key Benefits
- High Capacity Performance: Supports up to 300,000 BTU (natural gas) and 415,000 BTU max, suitable for heavy-duty heating applications.
- Field Versatility: Straight-through body pattern with an included natural to LP gas conversion kit for quick adaptations.
- Reliable Safety: Dual automatic operators provide redundant shutoff, essential for code compliance in intermittent ignition systems.
- Installation Efficiency: Features 1/4 inch male quick connects and top-accessible pilot adjustment and pressure taps.
- Application Compatibility: Optimal for use with Resideo S8600, S8610, and S90 series control modules.
Common Questions
Can the Resideo VR8304H4503 be used with Propane?
Yes. While it is set for natural gas at 3.5" W.C., it includes a conversion kit for LP (Liquid Propane) applications, allowing for 10.0" W.C. regulation.
What ignition systems is this valve compatible with?
This is an intermittent pilot dual automatic valve specifically designed for electronic ignition systems where a pilot is lit only when there is a call for heat.
What are the wiring requirements?
The valve requires a 24Vac power supply and utilizes standard 1/4 inch male quick connects for electrical termination to the ignition module and thermostat circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $274.34
-65%$274.34
$96.02Resideo VR8304H4503 Valve
The Resideo VR8304H4503 is a single stage gas valve engineered for intermittent pilot systems in high-capacity residential and commercial heating equipment. Operating at 24Vac, this slow opening gas valve provides controlled fuel delivery, preventing combustion surges and ensuring a smooth lighting sequence. With a robust 3/4 inch NPT inlet and outlet, it supports a high-flow capacity of 300,000 BTU, making it a standard choice for boilers and large furnaces requiring reliable pressure regulation. This dual automatic valve architecture integrates a solenoid-operated first valve and a diaphragm-operated second valve, meeting strict safety codes for dual shutoff. The internal adjustable servo regulator maintains stable outlet pressure despite fluctuations in the supply line. Each unit features 1/4 inch male quick connects for streamlined wiring and includes a natural to LP conversion kit (393691) for field flexibility. Designed for technicians, all adjustments and pilot taps are accessible from the top for efficient troubleshooting and installation.
Key Benefits
- High Capacity Performance: Supports up to 300,000 BTU (natural gas) and 415,000 BTU max, suitable for heavy-duty heating applications.
- Field Versatility: Straight-through body pattern with an included natural to LP gas conversion kit for quick adaptations.
- Reliable Safety: Dual automatic operators provide redundant shutoff, essential for code compliance in intermittent ignition systems.
- Installation Efficiency: Features 1/4 inch male quick connects and top-accessible pilot adjustment and pressure taps.
- Application Compatibility: Optimal for use with Resideo S8600, S8610, and S90 series control modules.
Common Questions
Can the Resideo VR8304H4503 be used with Propane?
Yes. While it is set for natural gas at 3.5" W.C., it includes a conversion kit for LP (Liquid Propane) applications, allowing for 10.0" W.C. regulation.
What ignition systems is this valve compatible with?
This is an intermittent pilot dual automatic valve specifically designed for electronic ignition systems where a pilot is lit only when there is a call for heat.
What are the wiring requirements?
The valve requires a 24Vac power supply and utilizes standard 1/4 inch male quick connects for electrical termination to the ignition module and thermostat circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
