Resideo VR8300A4516 Valve

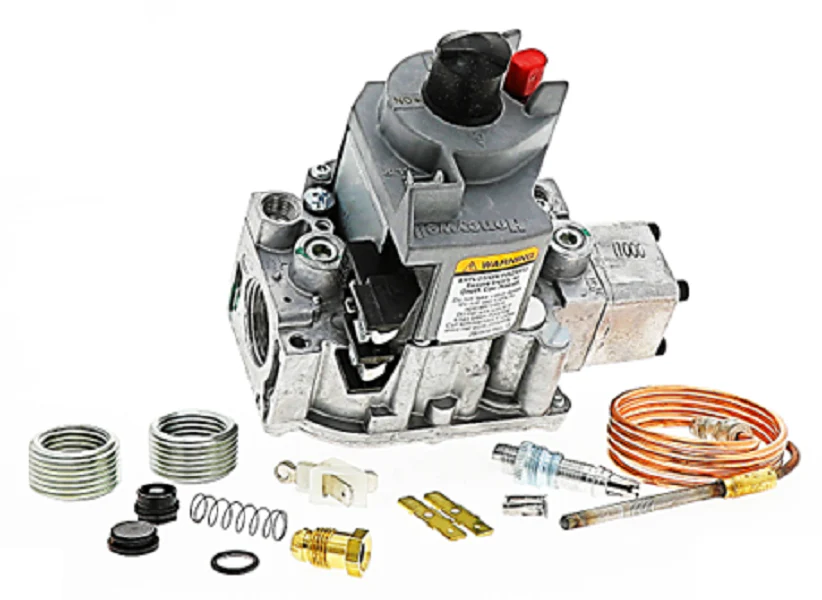

The Resideo VR8300A4516 Valve is a technical-grade standing pilot gas valve engineered for 24VAC gas-fired appliances. This combination gas control features a 3.5" water column pressure regulator setting and supports capacities ranging from 30,000 to 290,000 BTU/hr (up to 300,000 BTU/hr max). Designed with a straight-through body pattern and a standard 3/4" NPT inlet/outlet, the unit facilitates a streamlined standard opening gas valve replacement or new installation. The internal dual automatic operators—a solenoid-actuated first valve and a diaphragm-operated second valve—ensure a redundant safety shutoff that meets strict mechanical codes. The LITE-RITE (OFF-PILOT-ON) lighting sequence simplifies field service, while all wiring connections and pilot adjustments remain accessible from the top. For maximum field flexibility, this kit includes 3/4" x 1/2" reducer bushings, a natural gas to LP conversion kit, an ECO adapter, and a Q340 thermocouple with adapters, allowing for immediate configuration on various job sites.
Key Benefits for Technicians:- Dual Automatic Operators: Provides high-level safety redundancy by meeting dual shutoff requirements for commercial and residential applications.
- Adjustable Servo Regulator: Effectively maintains a stable gas output pressure despite significant fluctuations in the supply line.
- High BTU Capacity: Supports a wide operational range up to 290,000 BTU, making it suitable for larger atmospheric boilers and furnaces.
- Comprehensive Kit: Includes a 36-inch Q340 thermocouple, reducer bushings, and a LP conversion kit to eliminate extra trips to the supply house.
- Flexible Mounting: Allows for installation from 0 to 90 degrees in any direction from the upright position of the control knob.
Is the VR8300A4516 compatible with Liquid Propane (LP) systems?
Yes. This valve is shipped for natural gas but includes the 393691 conversion kit, specifically allowing for a field transition to LP while maintaining the 3.5" WC regulator functionality.
What is the purpose of the included ECO adapter?
The Energy Cut-Off (ECO) adapter allows for the connection of a high-limit temperature switch directly to the thermocouple circuit, enhancing safety in the event of an over-temperature condition.
Does this valve support electronic ignition systems?
No. The VR8300A4516 is strictly designed for standing pilot (continuous pilot) applications and should not be used with intermittent pilot or direct spark ignition systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
