Resideo VR8300A3518 Valve
The Resideo VR8300A3518 Valve is a robust, single-stage standing pilot gas valve designed for high-capacity 24VAC gas-fired appliances. Engineered as a professional-grade combination gas control, this unit offers a wide capacity range from 30,000 to 290,000 BTU/hr, making it a versatile solution for residential and light commercial furnaces. It features a dual automatic valve configuration that meets stringent safety codes for dual safety shut-off. The 1/2" x 3/4" NPT straight-through body pattern simplifies field installation, while the included 3/4" x 1/2" reducer bushing and 3/4" straight flange provide immediate adaptability for diverse piping requirements. Technicians will appreciate the adjustable servo regulator, which maintains a consistent 3.5" water column output despite fluctuations in inlet pressure. The standard opening gas valve also includes a natural to LP conversion kit and a Q340 thermocouple with adapters, ensuring a complete out-of-the-box solution for both fuel types. As a direct replacement for V800A1070 and V800A1476, it facilitates a seamless upgrade for legacy Honeywell systems. All wiring terminals and pressure taps are top-accessible to streamline diagnostic testing and setup.
Key Benefits- Broad Capacity Range: Handles demanding loads from 30,000 up to 290,000 BTU/hr.
- Universal Field Versatility: Includes an LP conversion kit and ECO adapter for varied installation environments.
- Precise Pressure Control: Integrated servo pressure regulator ensures stable 3.5" WC delivery.
- Simplified Maintenance: All adjustments and 1/8" NPT pressure taps are accessible from the top of the control.
- Direct Legacy Compatibility: Specifically engineered to replace aging V800A1070 and V800A1476 units without significant repiping.
Is the VR8300A3518 compatible with Propane (LP) systems?
Yes, while factory-set for natural gas, this valve includes a natural to LP conversion kit to accommodate liquid propane applications.
Can I install this valve in any orientation?
The valve is rated for mounting from 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertical orientations.
What arrives in the box for this specific SKU?

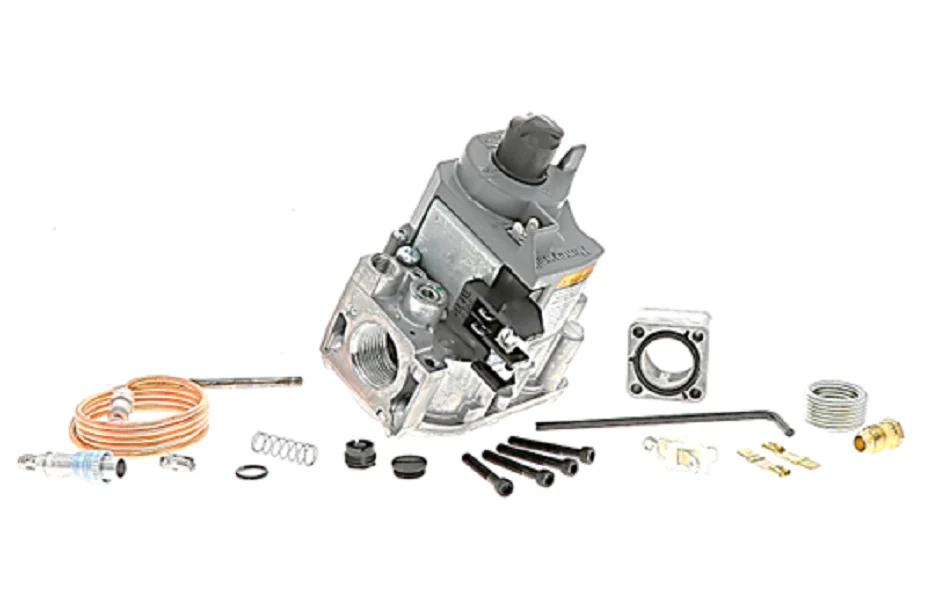

The package includes the VR8300A3518 gas valve, a Q340 thermocouple, a conversion kit, a 3/4" straight flange, an ECO adapter, and a 3/4" x 1/2" reducer bushing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
