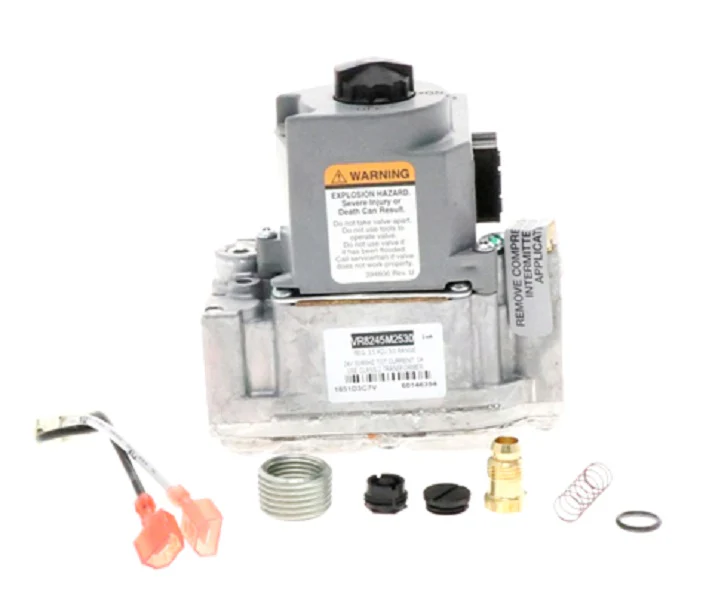

Resideo VR8245M2530 Gas Valve
The Resideo VR8245M2530 Gas Valve is a technical-grade universal electronic ignition gas control designed for field-service efficiency in 24 Vac gas-fired appliances. As a direct 722-079 gas valve replacement and the specified upgrade for the VR8205M2948, this dual-valve unit provides a versatile solution for systems utilizing intermittent pilot (IP), hot surface ignition (HSI), or direct spark ignition (DSI). Built with a 1/2" NPT inlet and 1/2" NPT outlet, it handles capacities from 20,000 to 200,000 BTU/hr, making it suitable for a wide range of residential furnaces and boilers. The compact 4-inch swing radius and top-accessible wiring connections allow for easy installation in tight vestibules. This standard opening gas valve includes a natural to LP conversion kit, a 1/2" x 3/8" reducer bushing, and an internal inlet screen to prevent contaminants from fouling the operators. It supports mounting from 0 to 90 degrees in any direction from the upright position.
Key Benefits
- Universal Compatibility: Field-replaceable for most IP, HSI, and DSI ignition systems, reducing the need to carry specialized stock.
- Complete Setup: Ships with a natural gas to propane conversion kit and necessary bushings to handle standard residential manifold pressures.
- Reliable Regulation: Factory-set at 3.5" WC for natural gas, featuring two automatic operators and a manual valve for redundant safety.
- Flexible Mounting: Rated for operation in any orientation from 0 to 90 degrees relative to the control knob.
Common Questions
Can I use this to replace a standing pilot valve?
No, the VR8245M2530 is specifically engineered for electronic ignition systems (IP, HSI, DSI) and does not support traditional standing pilot thermocouples.
Does this kit include everything needed for an LP switchover?
Yes, the package includes the regulator spring and hardware required for LP gas conversion.
What is the electrical requirement for the solenoid?
The valve operates on a standard 24 VAC, 50/60 Hz control circuit common in residential HVAC equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
