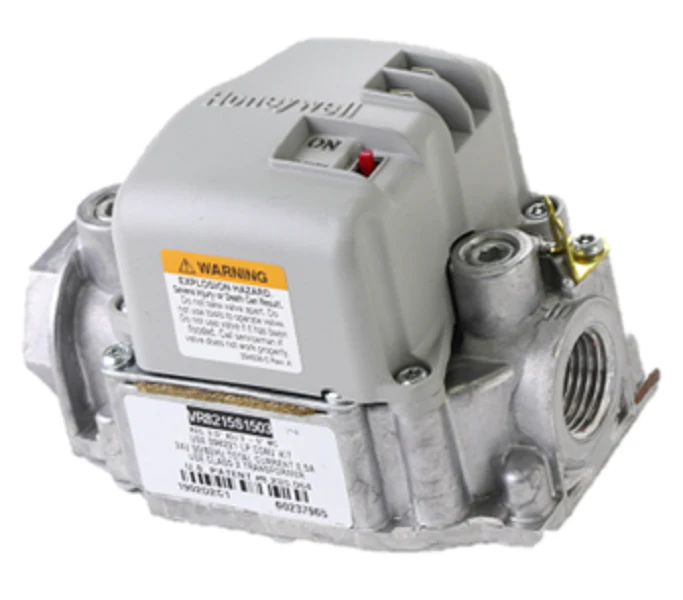

Resideo VR8215S1503 Gas Valve
The Resideo VR8215S1503 is a high-performance 24 Vac Gas Valve designed for single-stage direct ignition systems, including hot surface and direct spark applications. As a veteran HVAC tech, you know the importance of a straight-through body pattern and a multipoise mounting capability, which allows this valve to be installed in any orientation—critical for tight furnace cabinets or rooftop units. This standard opening valve is rated for 150,000 BTUh at a 1" WC pressure drop but can handle ranges from 15,000 to 200,000 BTUh depending on the setup. It comes pre-set with a 3.5" WC regulator and includes a 1/8" NPT pressure tapping with a plug for easy manifold pressure adjustments.
For inventory consolidation, the VR8215S1503 acts as a versatile gas valve replacement for several legacy models. It is the direct successor to VR8215S1214 and VR8215S1248, and it effectively replaces 722-051, 1176529, and VR8205M2872. The unit features dual solenoid-operated automatic valves for redundant safety shutoff, meeting strict industry codes. For field flexibility, a Natural Gas to LP conversion kit is included in the box, ensuring you have the right setup for propane furnace parts on every service call.
- Reduced Installation Turning Radius: Optimized for compact HVAC gas valve retrofits in confined spaces.
- Complete Replacement Compatibility: Directly replaces multiple Honeywell and Resideo legacy valves to streamline truck stock.
- Dual Safety Shutoff: Features two independent automatic operators for maximum failsafe protection.
- Fuel Flexibility: Includes LP conversion kit for seamless transition between natural gas and liquid propane systems.
- Simplified Wiring: Equipped with 1/4" male quick-connect terminals and top-accessible adjustments.
Common Questions:
How do I test the manifold pressure on this unit?
Use the 1/8" NPT pressure tapping located on the outlet side. Remove the plug and connect your manometer to verify the 3.5" WC regulator setting while the burner is firing.
Can this valve be used with a pilot light?
No, the VR8215S1503 is specifically engineered for direct spark ignition or hot surface ignition systems. It does not have a pilot gas outlet.
Is the gas valve orientation restricted?
This is a multipoise control, meaning it can be mounted 0 to 90 degrees in any direction from the upright position, including vertically, which is ideal for modern compact equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
