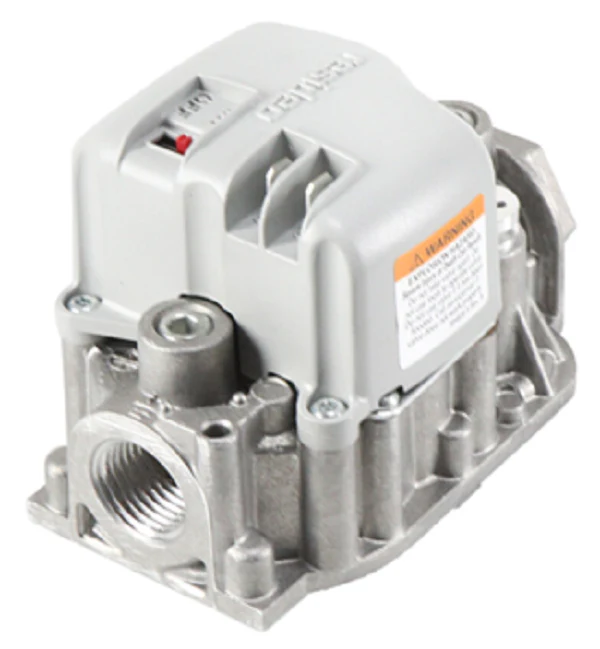

Resideo VR8215S1248T Gas Valve
The Resideo VR8215S1248T Gas Valve is a staple for servicing single-stage gas-fired appliances that utilize direct spark (DSI) or hot surface ignition (HSI). This 24V combination gas control is engineered for high-performance applications, managing capacities from 30 to 415 CFH. It integrates a manual shutoff, dual automatic operators, and a robust pressure regulator into a compact housing, which is critical when you are working in tight furnace cabinets. The standard opening characteristic ensures a reliable 1/2 PSI rating (3.5 in. wc setpoint) for consistent manifold pressure. One of the best field features is its mounting flexibility; you can orient this valve in any direction without affecting regulator performance. With top-access wiring and a reduced swing radius, the Resideo VR8215S1248T streamlines direct ignition valve replacement for Lennox and other major residential or commercial rooftop units.
Key Benefits for Contractors
- Dual Safety Shutoff: Features independent automatic safety valves where one acts as a failsafe, complying with strict safety code requirements.
- Installation Versatility: The compact design and universal mounting orientation allow it to fit where larger valves cannot.
- Field Serviceability: Top-mounted adjustments and 1/4" quick-connect terminals make for faster diagnostic checks and wiring.
- Multi-Fuel Capability: Primarily for natural gas, but includes a natural to LP conversion kit for flexibility on the truck.
- Verified Reliability: CSA certified and designed to withstand ambient temperatures from -40°F to 175°F.
Common Questions
Is this a direct replacement for Honeywell VR8205 series valves?
Yes, the VR8215S1248T is designed to replace most standard and slow-opening VR8205 and VR8215 controls using a 1/2-inch NPT connection.
Can this valve be used with a standing pilot system?
No, this is specifically a direct ignition gas valve and does not have a pilot gas outlet. It is for DSI or HSI systems only.
What should the thermostat heat anticipator be set to?
For this specific single-stage gas control, the heat anticipator should be set to 0.5 A as per the electrical rating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
