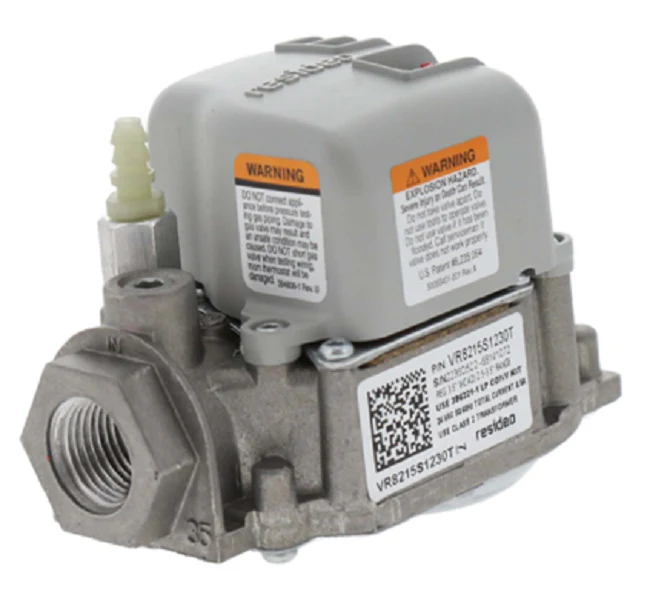

Resideo VR8215S1230T Gas Valve
The Resideo VR8215S1230T is a single-stage, standard opening gas valve designed for direct spark ignition (DSI) and hot surface ignition (HSI) applications in high-efficiency residential heating systems. Engineering for precise fuel control, this 24V gas valve features a compact footprint, making it a reliable drop-in replacement for tight furnace cabinets and boilers. With a 1/2 inch NPT inlet and outlet, it supports a capacity of up to 150,000 BTUs at 1 inch pressure drop, ensuring consistent output for natural gas systems. It includes a manual on/off switch and 1/4 inch male quick-connect terminals for streamlined electrical integration. The VR8215S1230T is rated for an ambient temperature range of -40°F to 175°F, providing stable performance in extreme mechanical environments. Techs should verify manifold pressure using the integrated pressure taps to ensure the 3.5 inch WC factory setting matches the OEM appliance specifications for optimal combustion.
Key Benefits for Technicians- Broad Compatibility: Optimizes inventory by serving as a versatile replacement for various DSI and HSI ignition systems.
- Compact Design: Simplified body geometry allows for easier installation in modern, high-density heat exchangers.
- Reliable Regulation: Built-in servo-operated regulator maintains stable outlet pressure despite fluctuations in supply piping.
- Environmental Resilience: Engineered to withstand high-heat cabinet conditions without coil degradation or mechanical sticking.
Can the VR8215S1230T be used with Liquid Propane (LP)?
Yes, but a 393691 LP conversion kit is required. Never attempt to run this valve on propane without installing the correct spring and orifice kit.
What is the proper orientation for mounting this gas valve?
This valve can be mounted 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
How do I troubleshoot a failure to open?
Verify 24VAC at the terminals during the ignition trial. If voltage is present and the valve doesn't click or gas isn't flowing, check for a clogged inlet screen or internal solenoid failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $98.49
-65%$98.49
$34.47Resideo VR8215S1230T Gas Valve
The Resideo VR8215S1230T is a single-stage, standard opening gas valve designed for direct spark ignition (DSI) and hot surface ignition (HSI) applications in high-efficiency residential heating systems. Engineering for precise fuel control, this 24V gas valve features a compact footprint, making it a reliable drop-in replacement for tight furnace cabinets and boilers. With a 1/2 inch NPT inlet and outlet, it supports a capacity of up to 150,000 BTUs at 1 inch pressure drop, ensuring consistent output for natural gas systems. It includes a manual on/off switch and 1/4 inch male quick-connect terminals for streamlined electrical integration. The VR8215S1230T is rated for an ambient temperature range of -40°F to 175°F, providing stable performance in extreme mechanical environments. Techs should verify manifold pressure using the integrated pressure taps to ensure the 3.5 inch WC factory setting matches the OEM appliance specifications for optimal combustion.
Key Benefits for Technicians- Broad Compatibility: Optimizes inventory by serving as a versatile replacement for various DSI and HSI ignition systems.
- Compact Design: Simplified body geometry allows for easier installation in modern, high-density heat exchangers.
- Reliable Regulation: Built-in servo-operated regulator maintains stable outlet pressure despite fluctuations in supply piping.
- Environmental Resilience: Engineered to withstand high-heat cabinet conditions without coil degradation or mechanical sticking.
Can the VR8215S1230T be used with Liquid Propane (LP)?
Yes, but a 393691 LP conversion kit is required. Never attempt to run this valve on propane without installing the correct spring and orifice kit.
What is the proper orientation for mounting this gas valve?
This valve can be mounted 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
How do I troubleshoot a failure to open?
Verify 24VAC at the terminals during the ignition trial. If voltage is present and the valve doesn't click or gas isn't flowing, check for a clogged inlet screen or internal solenoid failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
