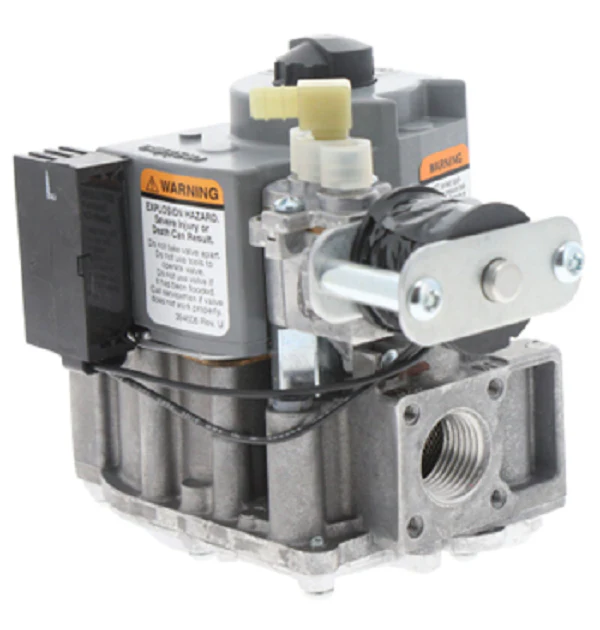

Resideo VR8205Q2787T Gas Valve
The Resideo VR8205Q2787T is a 2-stage 24V intermittent pilot gas valve designed for direct ignition systems in high-efficiency residential heating applications. This dual-stage gas control features a 1/2 inch NPT inlet and outlet, delivering precise pressure regulation for dual-output furnaces and boilers. Engineered for natural gas applications, it includes an LP conversion kit for field versatility. The standard opening characteristic ensures consistent burner light-off, while the compact 4-1/8 inch swing radius allows for installation in tight vestibules. This valve integrates a two-terminal solenoid for the first stage and a third terminal for second-stage activation, maintaining a 150,000 BTU/hr capacity at 1-inch pressure drop. Technicians should note the straight-through body pattern and the ECO (Energy Cut Off) connector compatibility, making this a reliable replacement for OEM furnace gas valves requiring precise manifold pressure management during the heating cycle.
Key Benefits
- Dual-Stage Performance: Optimized for high-efficiency equipment, providing stable manifold pressure for low and high fire modes.
- Compact Footprint: The VR8205 series architecture facilitates easy retrofitting in space-constrained furnace cabinets.
- Field Adaptability: Includes 393691 LP conversion kit and 1/2 x 3/8 inch reducers for varied piping requirements.
- Direct Ignition Integration: Specifically designed for DSI (Direct Spark Ignition) and HSI (Hot Surface Ignition) controls.
Common Questions
Can the VR8205Q2787T be used with Propane?
Yes, while factory-set for Natural Gas, it includes the necessary orifice and spring kit for LP gas conversion.
What is the proper orientation for installation?
This valve can be mounted 0 to 90 degrees in any direction from the upright position of the gas control knob.
Does this model support 120V systems?
No, this is a 24VAC gas valve; using higher voltage will damage the internal solenoids and control circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
